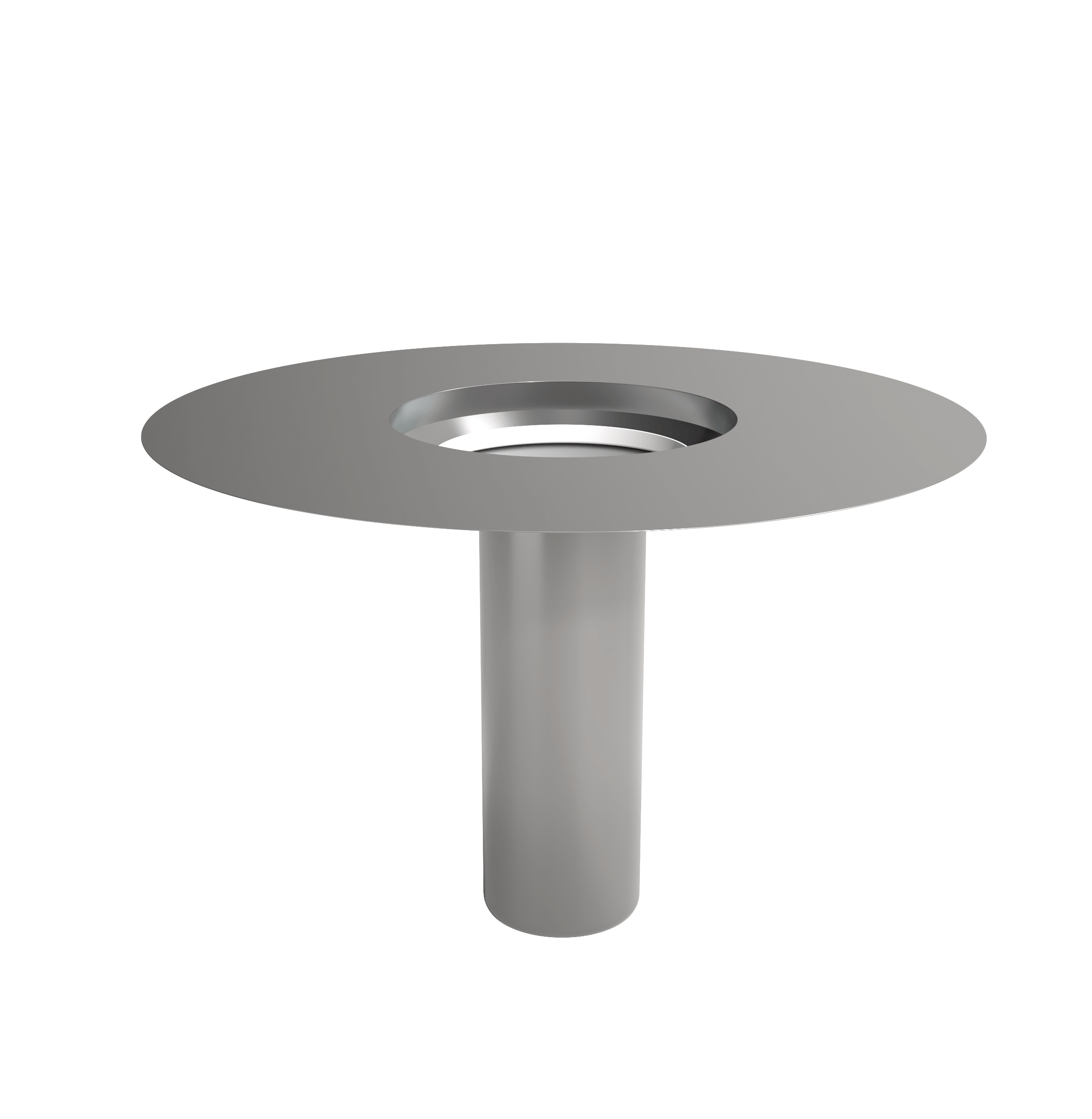

Roof drain KK with vertical outlet

Drain with collection basin suitable for drainage of inverted structures. The inverted structure drain is always used together with a suitable screen structure. The drain made of acid-resistant steel withstands demanding weather conditions and temperature fluctuations.

Technical data
Model
KK
Material
Acid-resistant steel, primed flange
Outlet location
Bottom
Outlet diameter ∅
75, 110 or 160 mm
Outlet height
250, 300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000, 1100 or 1200 mm
Diameter of the collection basin ∅
220 mm
Depth of the collection basin
50 or 100 mm
Flange diameter ∅
530 mm

Other sizes can be made to order.

Accessories

Self-adjusting thermocable (16W or 32W)

The roof drain with thermocable stays unfrozen in winter conditions. Available with 2, 3, 5, 10, 15, 20 and 25 m connection cable.

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

Bitumen flange

The bitumen flange provides the best possible connection between the manhole and the waterproofing.

LVI-numbers
Product LVI-nro
KK-50/350 3380417
KK-75/250 3380423
KK-75/300 3380425
KK-75/350 3380426
KK-75/400 3380427
KK-75/450 3380428
KK-75/500 3380429
KK-75/550 3380431
KK-75/600 3380433
KK-110/250 3380442
KK-110/300 3380443
KK-110/350 3380444
KK-110/400 3380445
KK-110/450 3380446
KK-110/500 3380447
KK-110/550 3380448
KK-110/600 3380449
KK-110/700 3380451
KK-110/800 3380452
KK-110/900 3380453
KK-110/1000 3380439
KK-110/1100 3380440
KK-110/1200 3380441
KK-160/250 3380454
KK-160/300 3380455
KK-160/350 3380456
KK-160/400 3380457
KK-160/450 3380458
KK-160/500 3380459
KK-160/550 3380466
KK-160/600 3380467

Documents and images

Certifications and approvals

Tested in accordance with SFS-EN 1253-2.

The European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the roof drain is determined by site-specific certification.

Maintenace and spare parts

Maintenance of the screen structure in accordance with the product maintenance instructions. Other maintenance measures in accordance with the property service manual.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD product libraries.

ProdLib
MagiCAD
Compatible products

Screen structures

With the help of our technical sales, you can find a solution that works for even the most demanding site!
