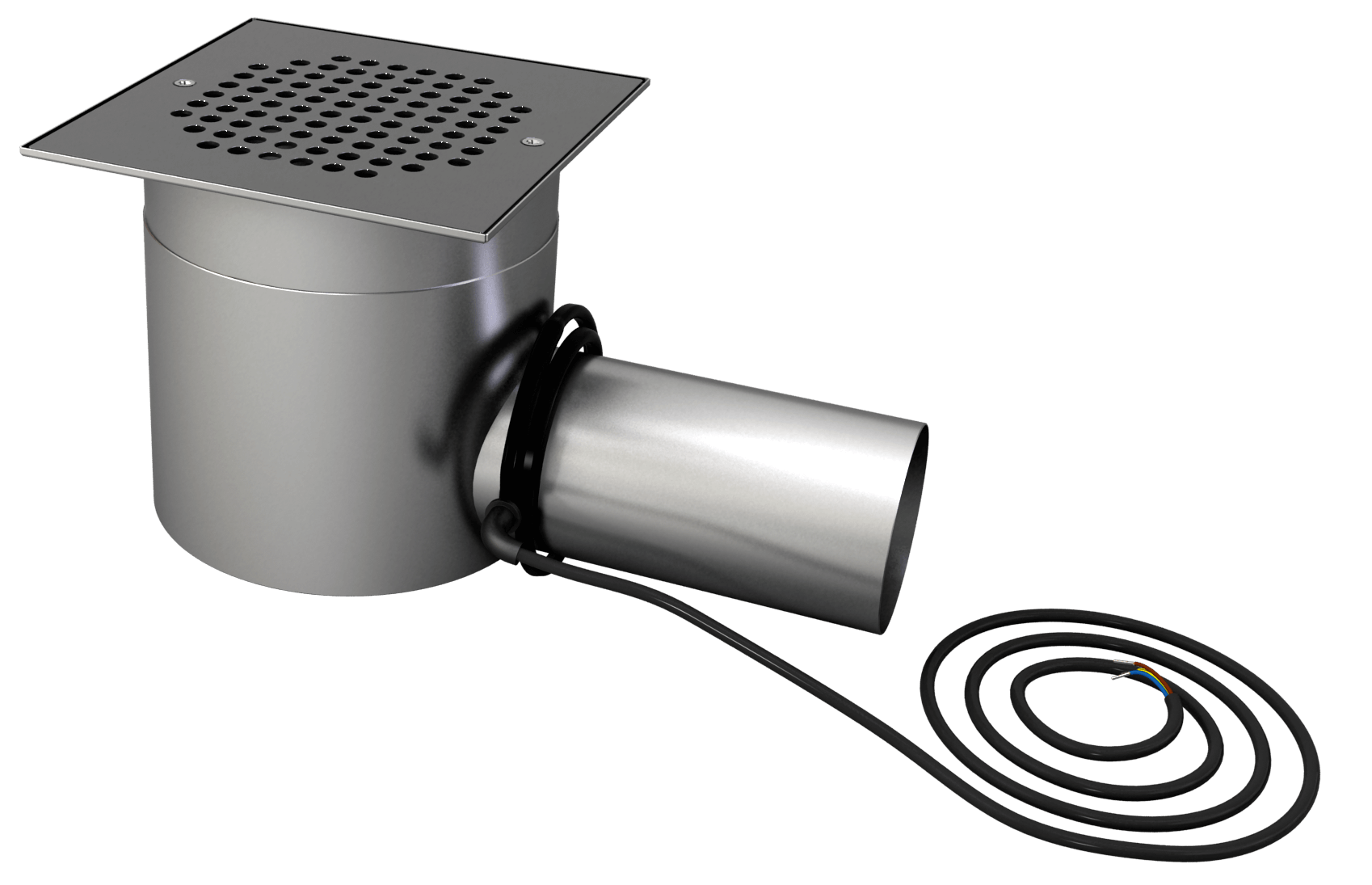

  • Peltitarvike surface water drain
    Surface water drain with steel grate

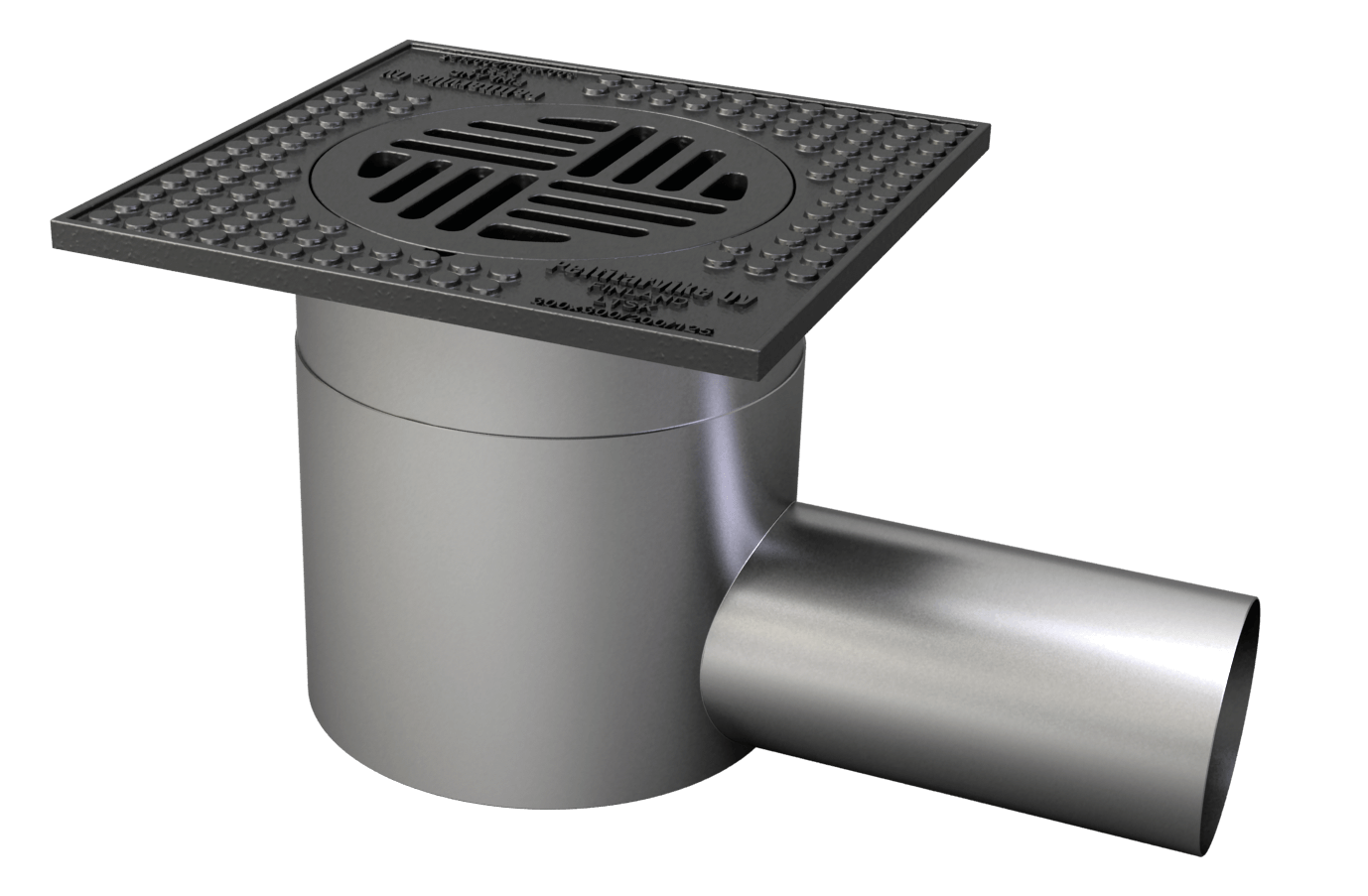

  • Peltitarvike surface water drain
    Surface water drain with cast iron grate
  • Peltitarvike surface water drain dimensions

Surface water drain

Surface water drain with 2-part adjustable extension ring for drainage of yard and terrace areas. The drain suitable for yards has a cast iron grate (25t). The drain suitable for terraces has a steel grate. Includes a sand bucket.

Technical data
Material
Acid-resistant steel, grate made of acid-resistant steel or cast iron
Extension ring diameter ∅
220 mm
Extension ring height
According to the order
Extension ring adjustment range
50 mm
Outlet location
Side
Outlet diameter ∅
Max. 110 mm
Outlet length
According to the order
Rainwater cover:

Material Cover Cover frame
Cast iron (25 t) ∅ 205 mm 300x300 mm
Acid-resistant steel (hst) 240x240 mm 245x245 mm

Accessories

Self-adjusting thermocable (16W or 32W)

The drain with thermocable stays unfrozen in winter conditions.  Available with 2, 3, 5, 10, 15, 20 and 25 m connection cable.

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

Cast-in supports

LVI-numbers
Product LVI-nro
Surface water drain, acid-resistant steel grate 3381343
Surface water drain, cast iron grate 3381344

Documents and images

Maintenance
Emptying and cleaning the sand bucket.
