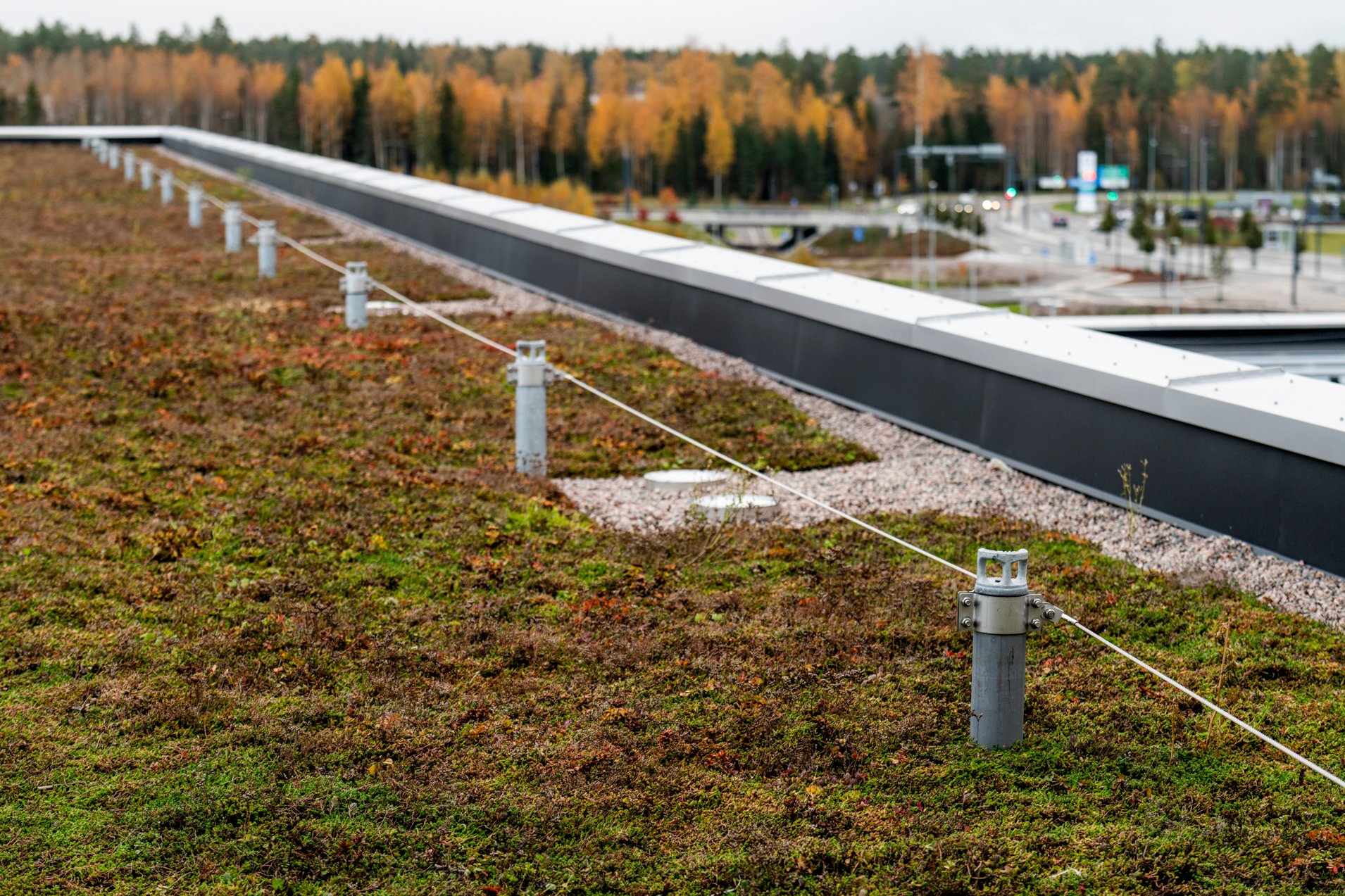

PITO™ Greenline lifeline system
Choose the reliable PITO™ Greenline lifeline system to facilitate working at heights. The PITO™ Greenline lifeline system is installed between the most robust PITO™ roof anchor posts or anchor points on the market, thus achieving fall protection for the entire roof.
The PITO™ Greenline lifeline system is also suitable for other work at heights, as it can be installed on roof anchor posts or anchor points attached to a wall or other load-bearing structure.
We help you design site-specific, correctly dimensioned fall protection solutions for up to four simultaneous users!
Technical data
- Compatible anchor points
- All PITO™ roof anchor posts and anchor points
- Span
- Up to 15 m, depending on the type of anchor point, the recommendation is 7.5-10 or 10-12 m
- Cable length
- Depending on the type of anchor point, max. 150 or 250 m
- Users
- Up to 4 people
Benefits of the system
- Up to four people can use the system at the same time.
- The user-friendly system makes walking on the roof safe and facilitates work.
- After attaching to the cable, the user is protected along the entire length of the line and does not need to detach from the cable at the roof anchor post.
- The system can be used to implement personal fall protection for all different roof structures, even during construction.
- In addition to new construction, the Greenline lifeline system can be installed on existing PITO™roof anchor posts.
Documents and images
Certifications and approvals
CE marked.
The PITO™ Greenline lifeline system meets the requirements of the fall protection standards EN 795:2012 Type A + C and CEN/TS 16415:2013 Type A+ C.
The system has been granted a utility model (No. 10218) by the Finnish Board of Patents and Registration.
Installation
The PITO™ Greenline lifeline system is installed between PITO™ roof anchor posts or anchor points. Authorization is required for installation. Installation is carried out by installation partners authorized by Peltitarvike.
Annual inspection
For the designer
BIM and CAD objects of PITO™ roof safety products can be found in the ProdLib product library.
Frequently asked questions about the lifeline system
A lifeline system is considered for the roof of the property. What do I need to consider when designing fall protection?
As part of the lifeline system, the distance between the PITO™ roof anchor posts must not exceed 15 m, recommended 10-12 m. Ask the product-specific recommendations from our technical sales before installing the products. Our technical support will be happy to help you design a lifeline system.
How many people can use the PITO™ Greenline lifeline system?
The PITO™ Greenline lifeline system can be used by up to four people at the same time, depending on the type of roof anchor post.
Can I install the PITO™ Greenline lifeline between the anchor points itself?
No, installers authorised by Peltitarvike are always responsible for installing the PITO™ Greenline lifeline system. The lifeline system can only be installed between PITO™ roof anchor posts or anchor points . The installation time is agreed after the roof anchor posts or anchor points are installed on the roof and when the roof waterproofing work is in the final stages. The PITO™ Greenline lifeline system can also be installed on existing PITO™ roof anchor posts on the roof of the property.
Explore the properties
Finlandia Hall
Safe movement and work on the roof of Finlandia Hall is made possible by Peltitarvike's PITO™ roof anchor posts and the PITO™ Greenline lifeline system.
Kivis Shopping Center
Peltitarvike delivered PITO™ roof anchor posts to the roof of Kivis Shopping Center and installed the PITO™ Greenline lifeline system covering the entire roof area.
