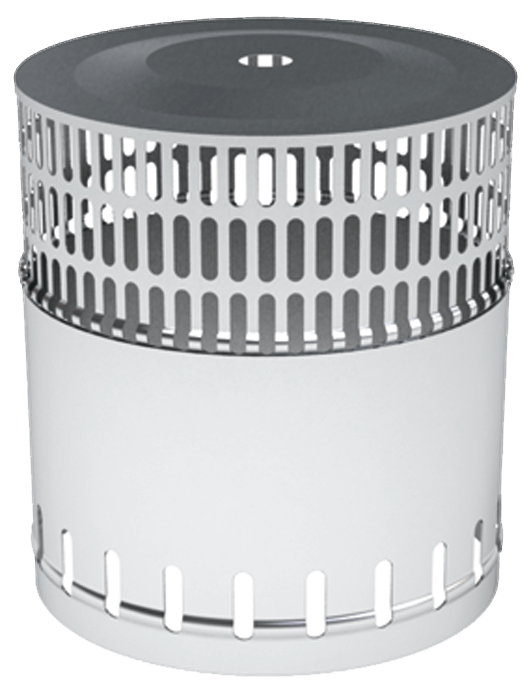

  • Peltitarvike screen structure for inverted roof

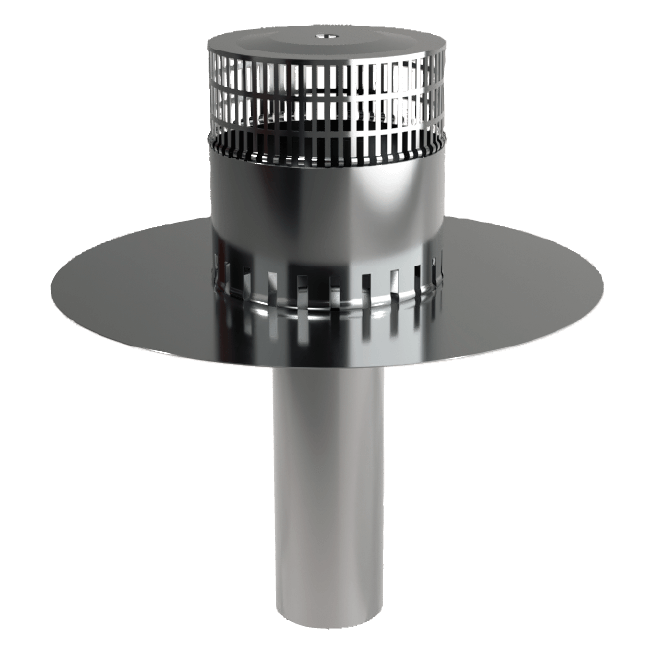

  • Peltitarvike screen structure for inverted roof + drain KK
    Kattotason screen structure for inverted roof and drain KK
  • Peltitarvike screen structure for inverted roof dimensions
    Height made to order

Screen structure for inverted roof

Screen structure with a extension ring for drainage of the inverted roof.

Compatible with inverted structure drain model KK.

Technical data
Material
Acid-resistant steel
Extension ring diameter ∅
220 mm
Extension ring height
According to the order (from waterproofing to finished surface)
Other sizes can be made to order.

LVI-numbers
Product LVI-nro
Screen structure for inverted roof 3380200

Documents and images

Maintenance

Inspection and cleaning of the grate. Other measures from the roof service manual.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD product libraries.

ProdLib
MagiCAD
Compatible products

Inverted structure drains

With the help of our technical sales, you can find a solution that works for even the most demanding site!
