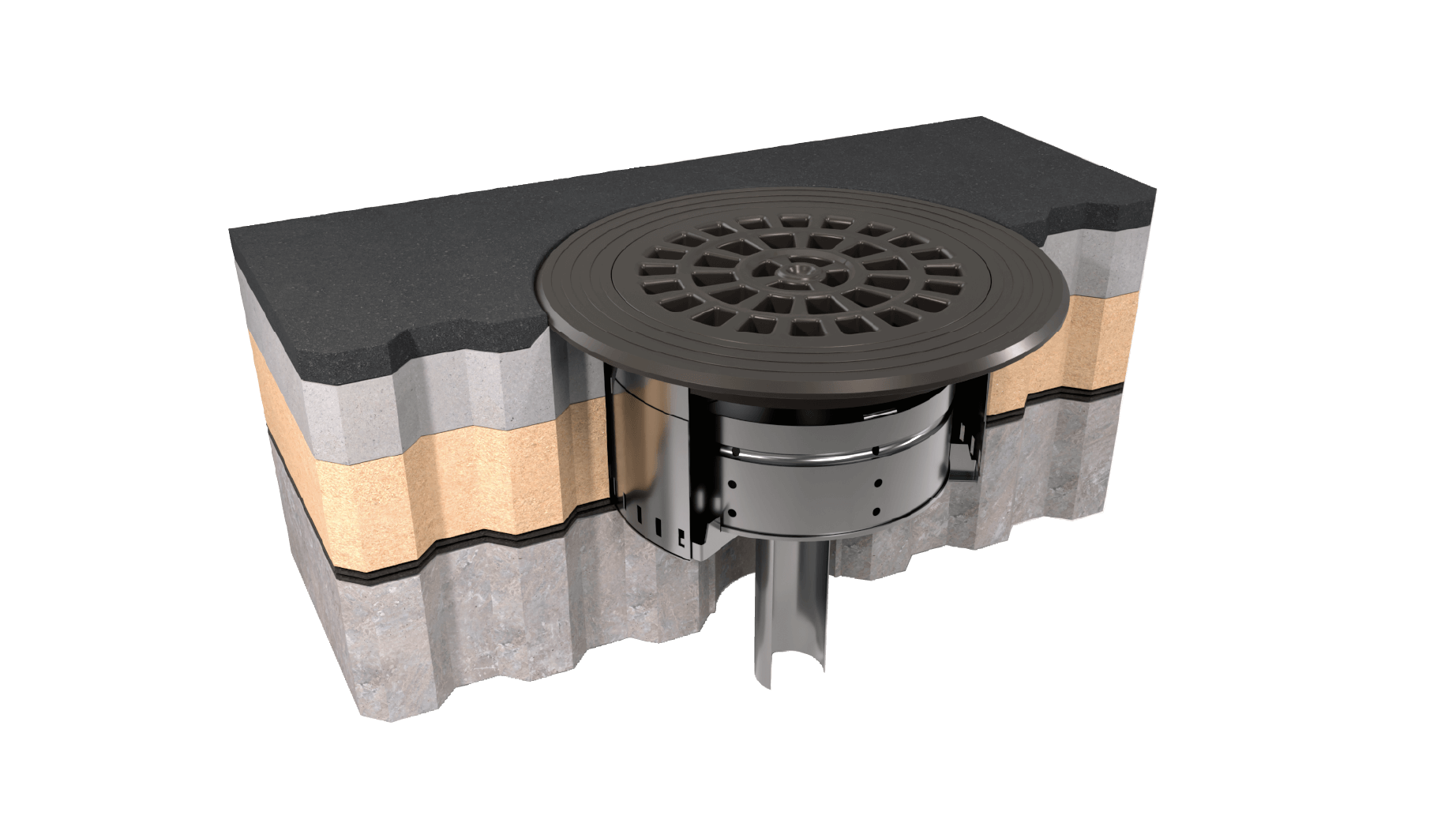

    Screen structure for traffic deck and drain KK
  • Peltitarvike screen structure for traffic deck with sand bucket
    Screen structure for traffic deck with sand bucket
  • Peltitarvike silkonstruktion för trafikled

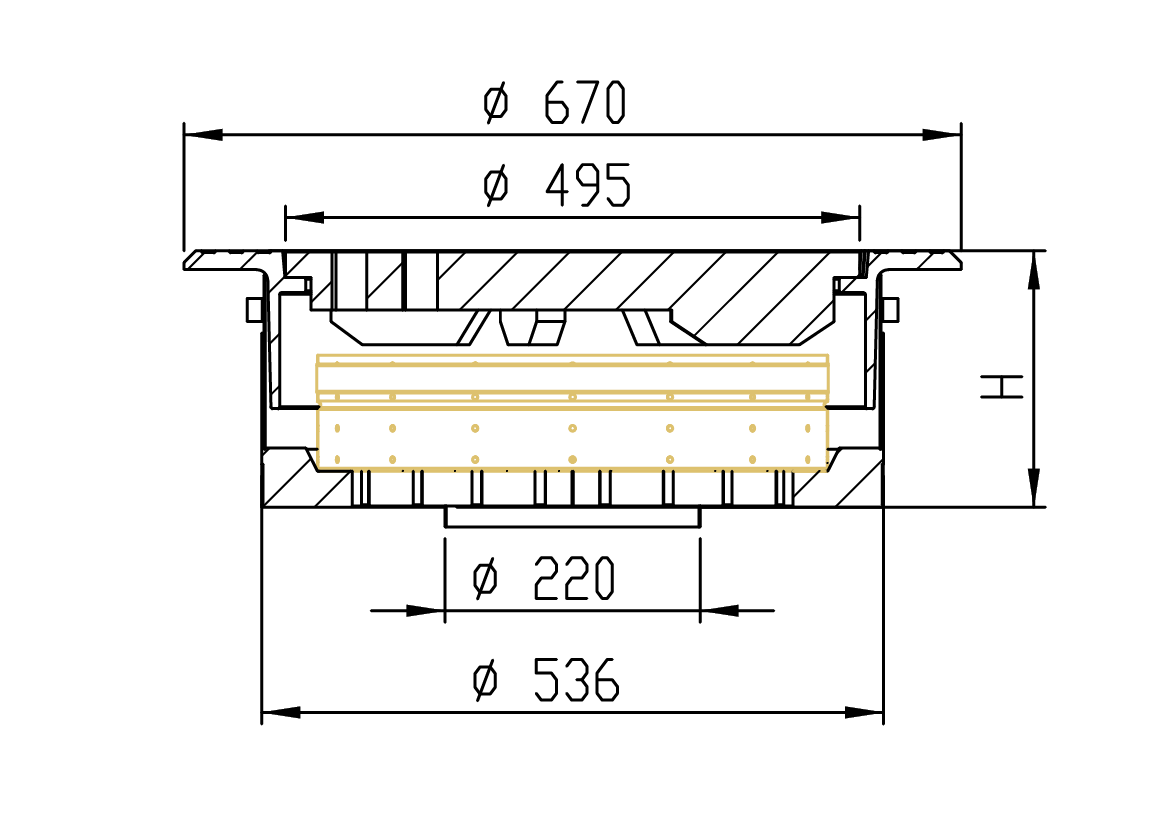

  • Peltitarvike screen structure for traffic deck 500/670 dimensions
    Height made to order

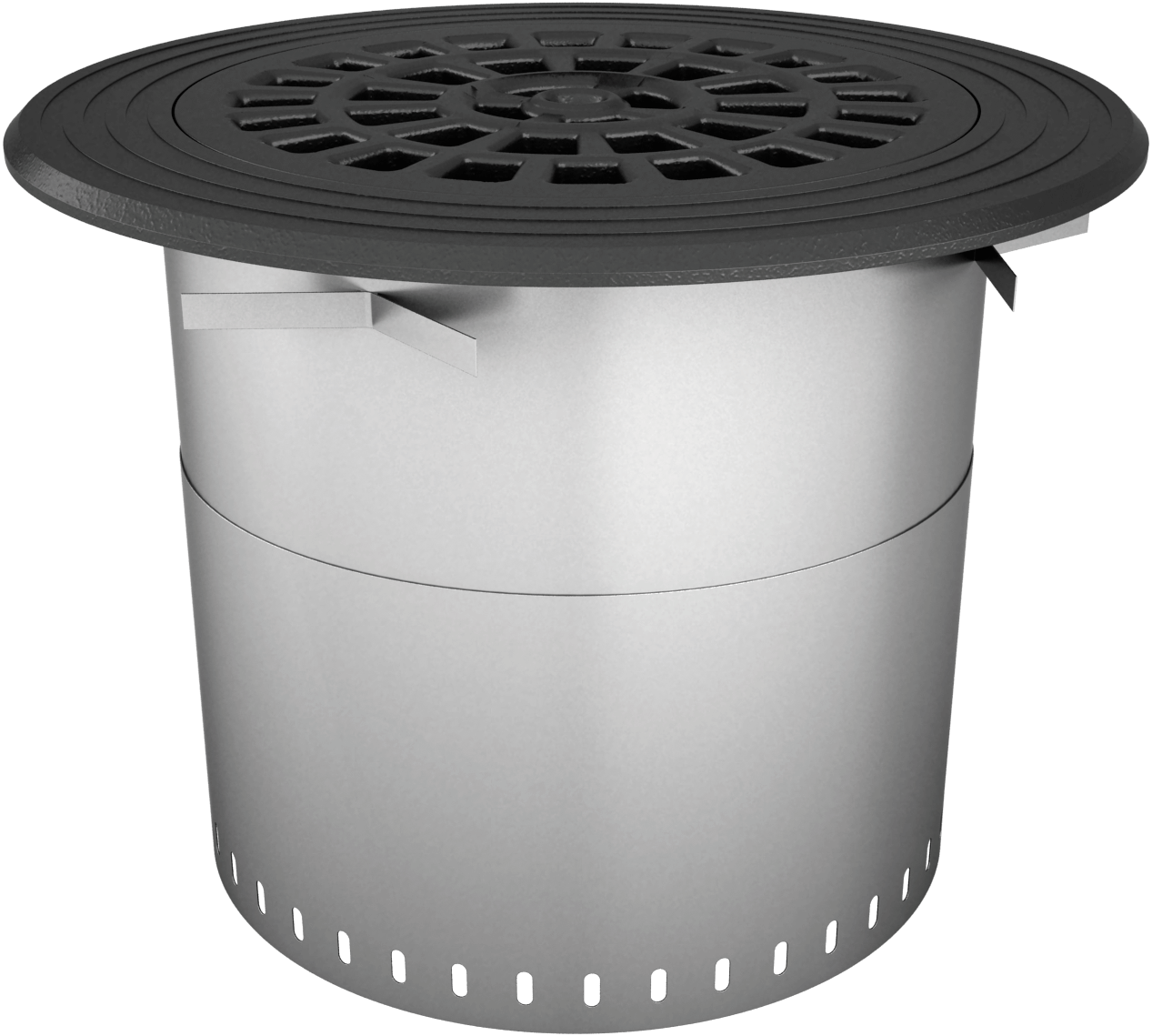

Screen structure for traffic deck 500/670, 40t

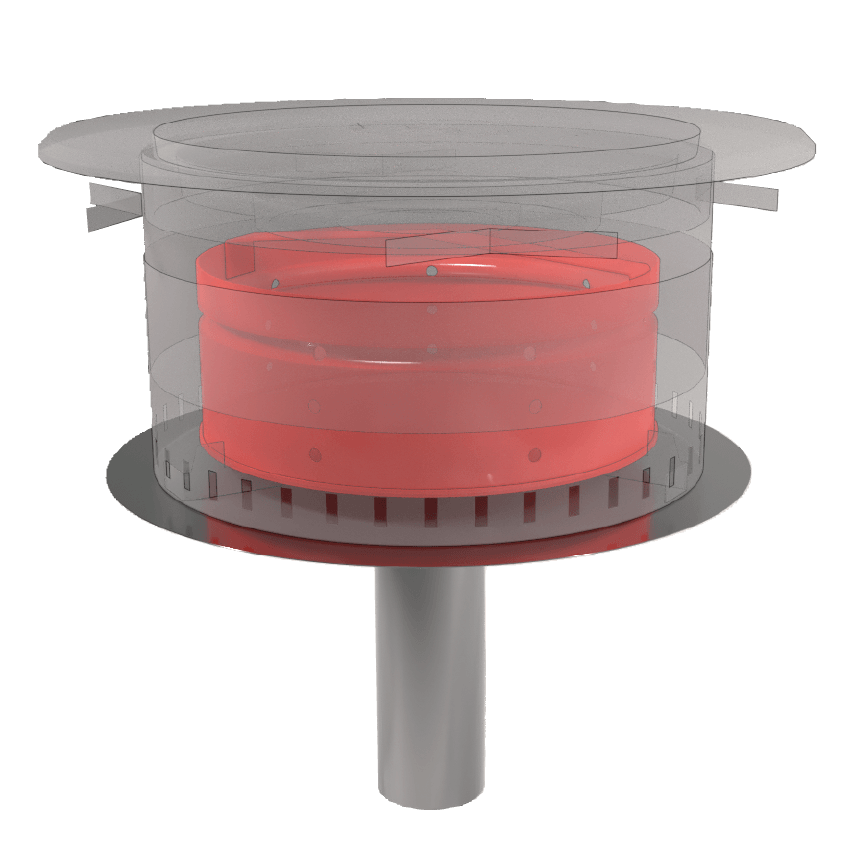

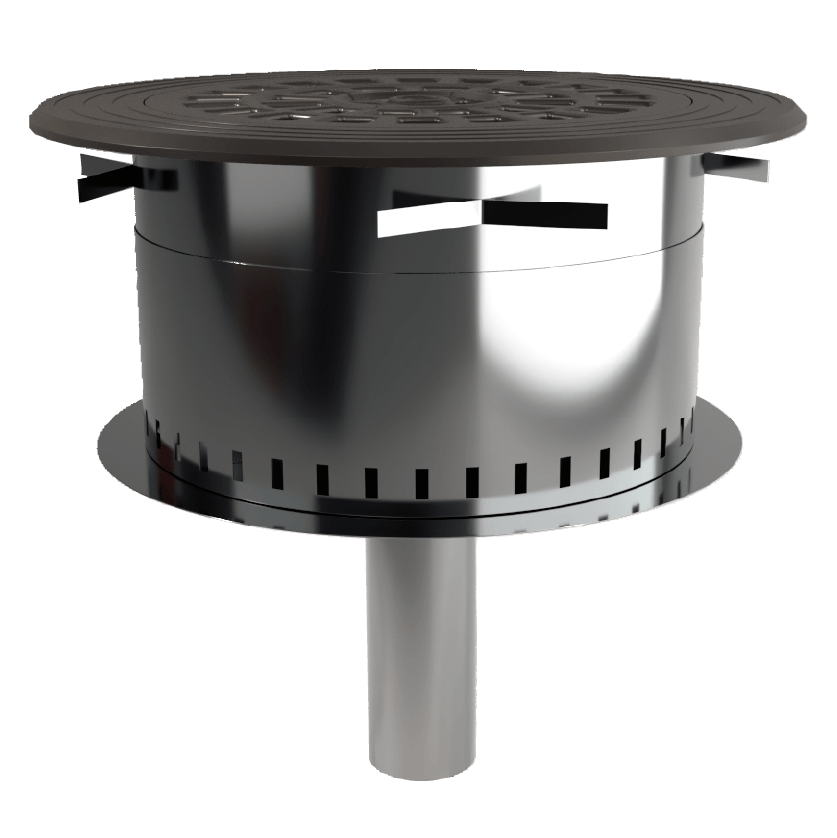

Screen structure with two-part adjustable extension ring and cast iron grate for drainage fo trafficked areas. Includes a sand bucket.

Compatible with inverted structure drain model KK.

Technical data
Material
Acid-resistant steel, grate and frame made of cast iron
Grate diameter ∅
500 mm
Grate frame diameter ∅
670 mm
Extension ring diameter ∅
550 mm
Extension ring height
According to the order (from waterproofing to finished surface)
Load capacity
40 t
Other sizes can be made to order.

LVI-numbers
Product LVI-nro
Screen structure for traffic deck 500/670 3381341

Documents and images

Maintenance

Emptying and cleaning the sand bucket. Inspection of the grate, e.g. for cracks.
