Screen structures for inverted structures

The structure of thermally insulated paved areas and terraces is almost exclusively an inverted solution. In this case, the waterproofing is protected from mechanical stress, snow and ice under the thermal insulation.

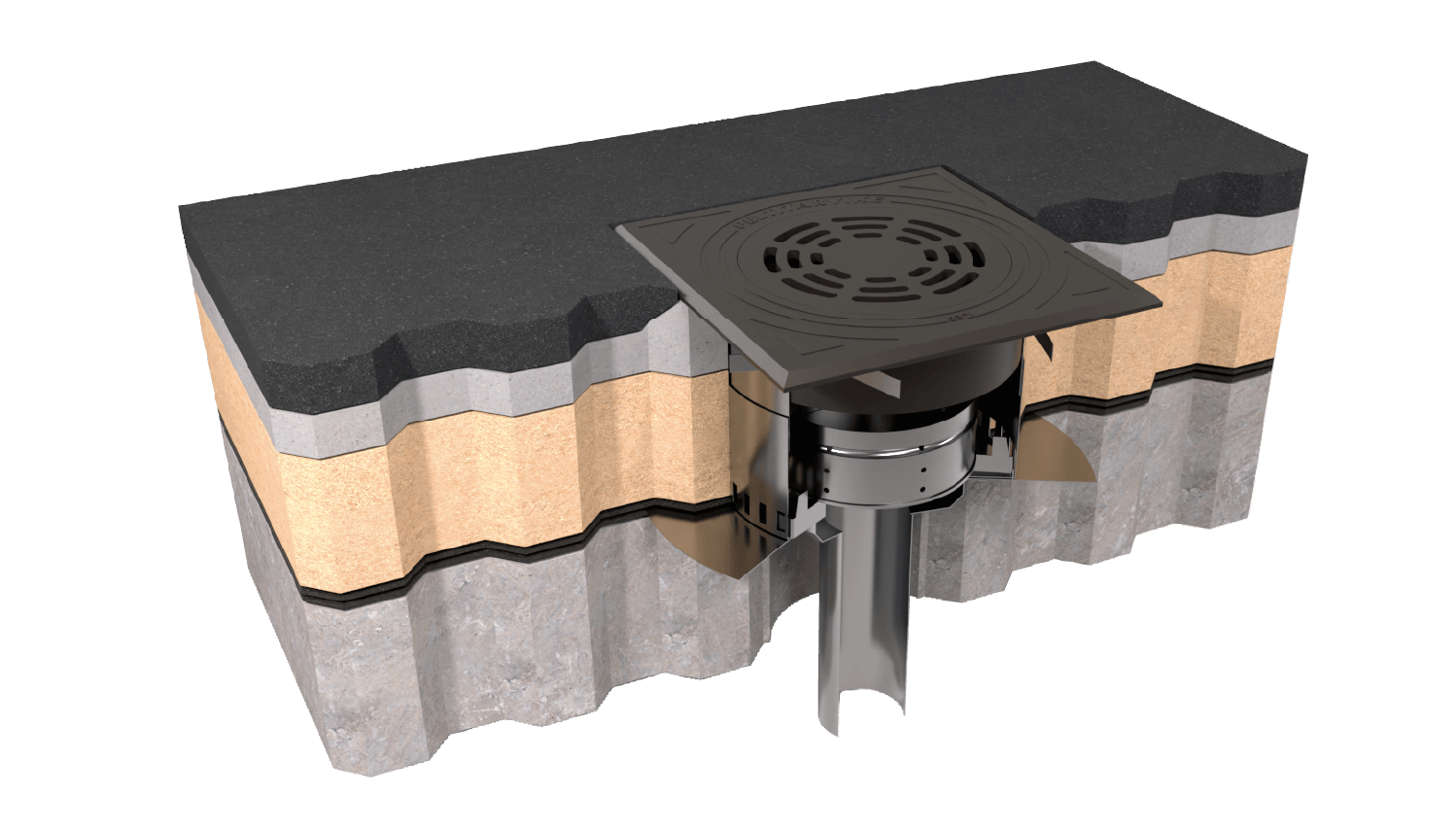

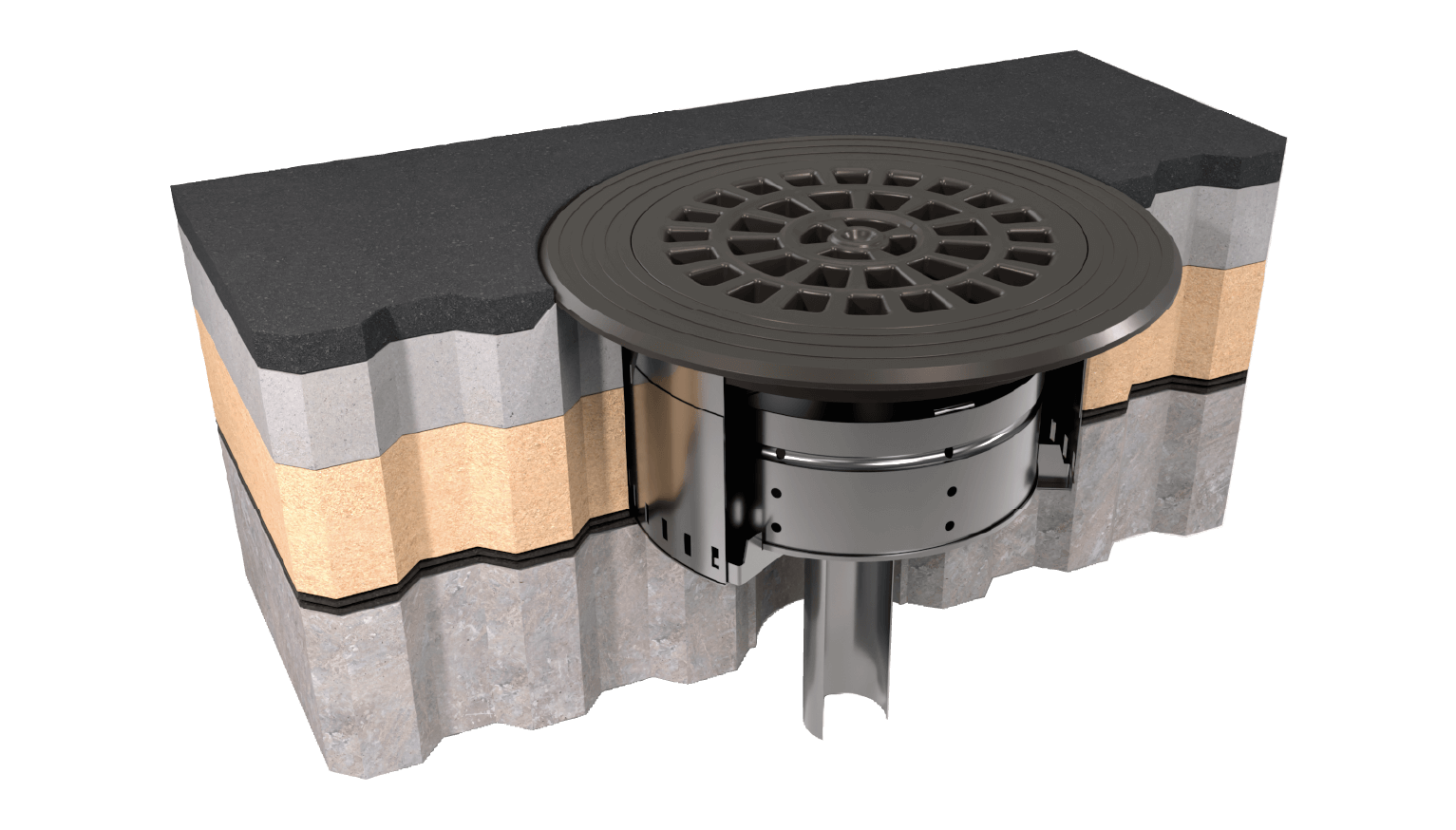

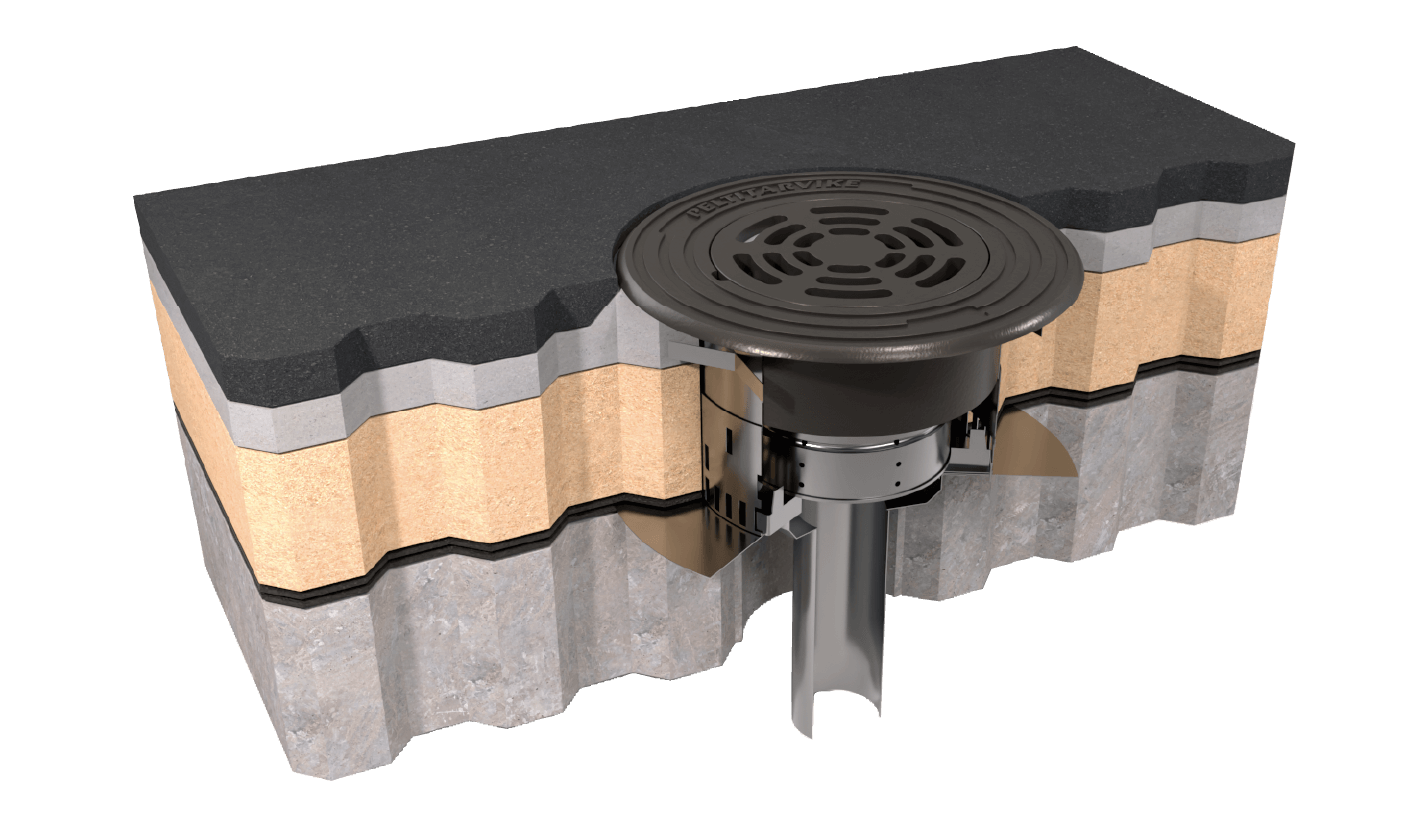

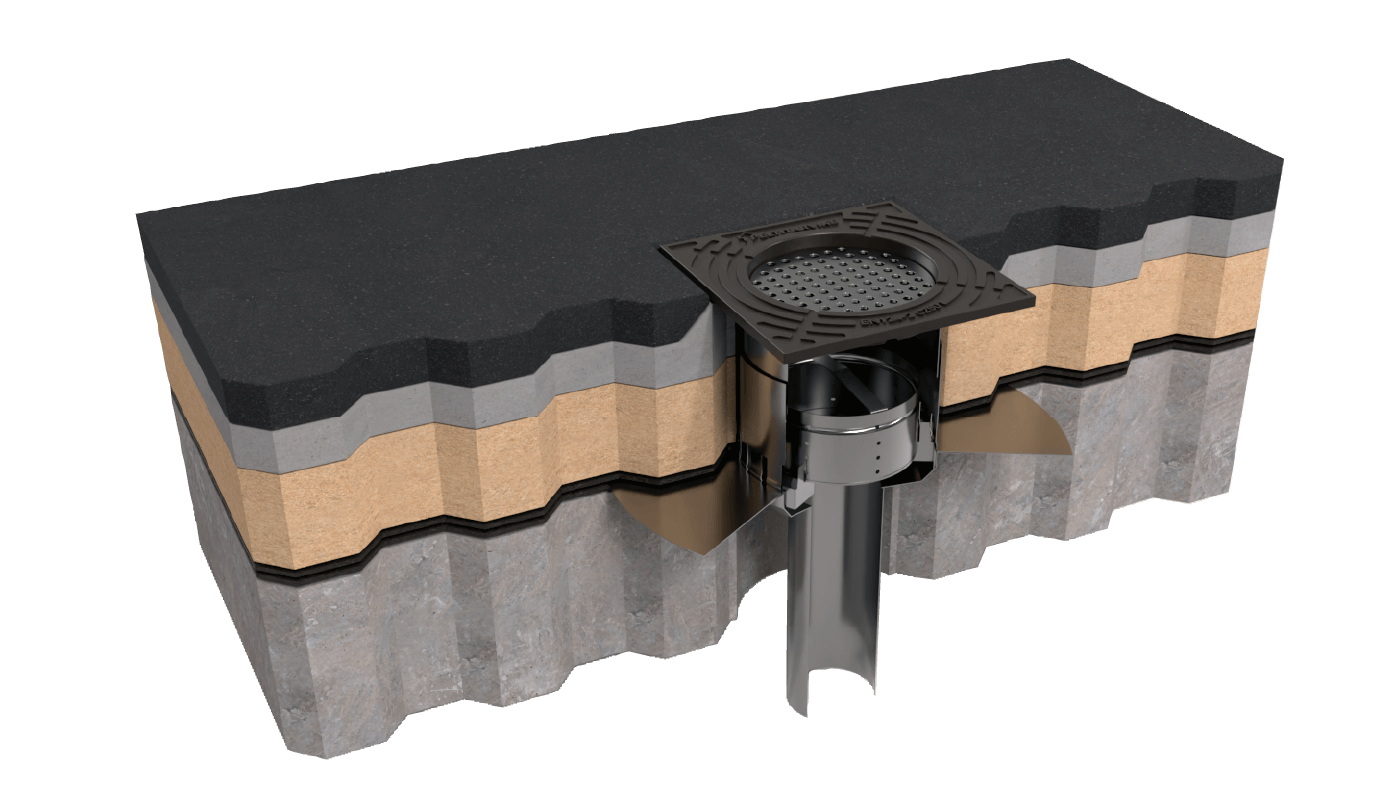

The drain connected to the waterproofing is always used together with a site-specific screen structure that collects surface water. Water that has passed under the surface structure is directed to the stormwater drainage system through the holes in the lower-part of the screen structure extension ring. With Peltitarvike's acid-resistant steel drains and screen structures, you will implement a functional and durable system for stormwater drainage of inverted structures.

We help with the design of stormwater drainage systems for even the most demanding sites and, if necessary, we tailor the site-specific drainage products!

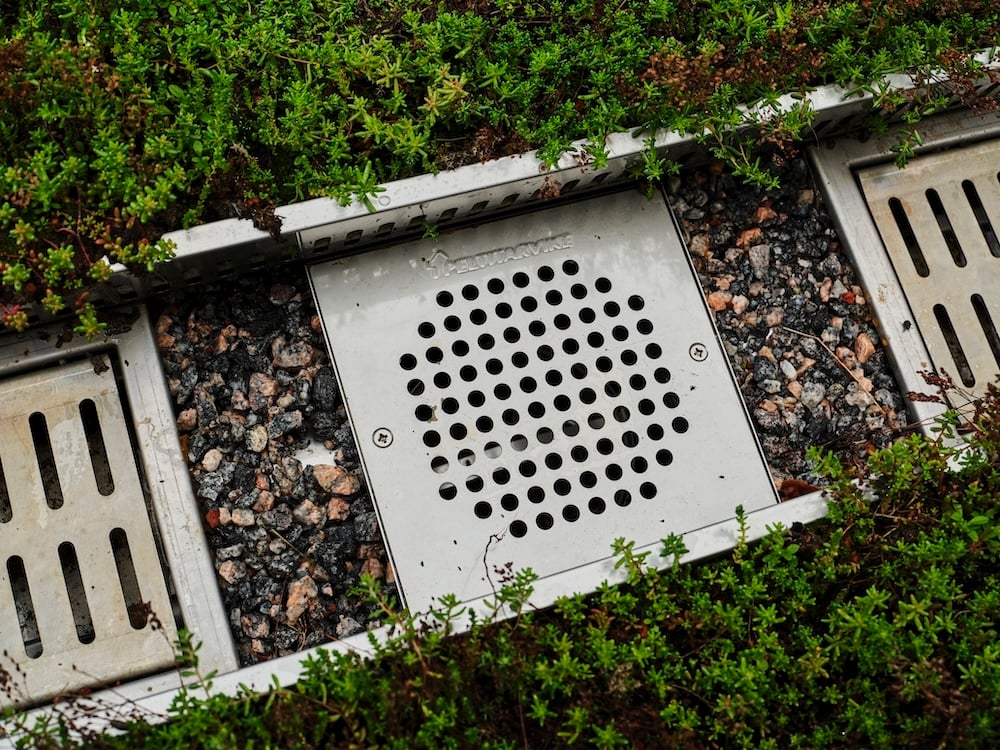

Peltitarvike screen structure for inverted structure

Frequently asked questions about screen structures

Which screen structure should I choose for an inverted structure?

The screen structure is selected based on the surface material and the load-bearing capacity. The height of the screen structure is determined by the structural thickness of the site. The screen structures have a telescopic extension rings. Simply just indicate the thickness of the structure when ordering and we will deliver the appropriate product. The adjustable screen structure also allows for the natural subsidence of the structure. Our technical support will be happy to help you choose the right screen structure.

With the help of our technical sales, you can find a solution that works for even the most demanding site!
