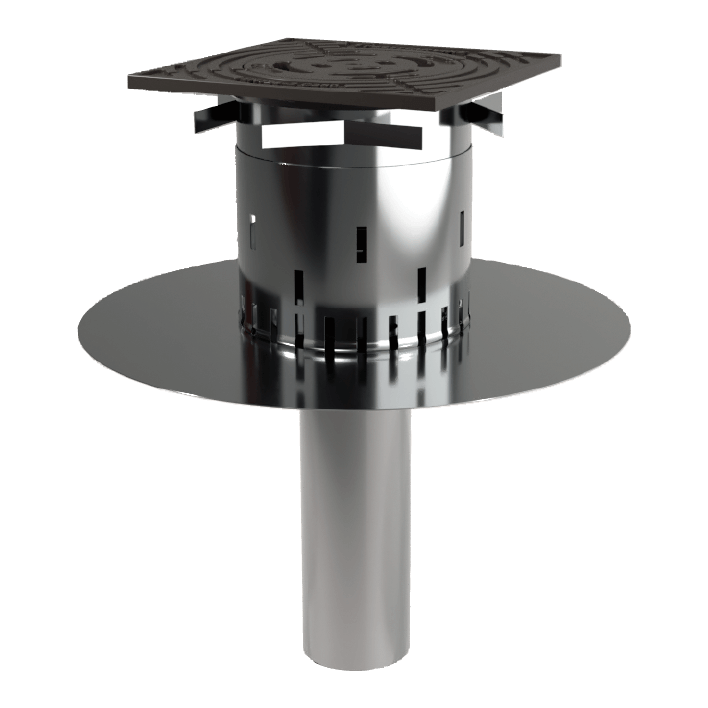

    LTSK screen structure for traffic deck and drain KK
  • Peltitarvike LTSK screen structure for traffic deck with sand bucket

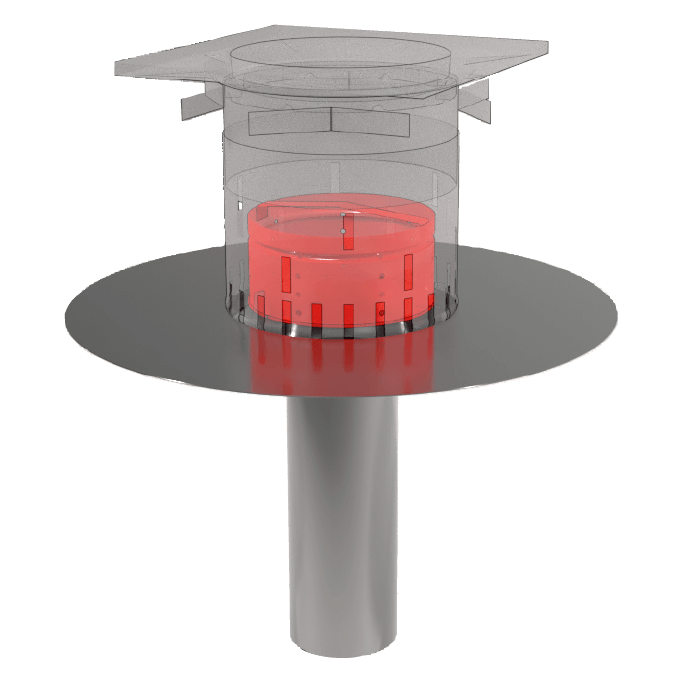

    LTSK screen structure for traffic deck with sand bucket

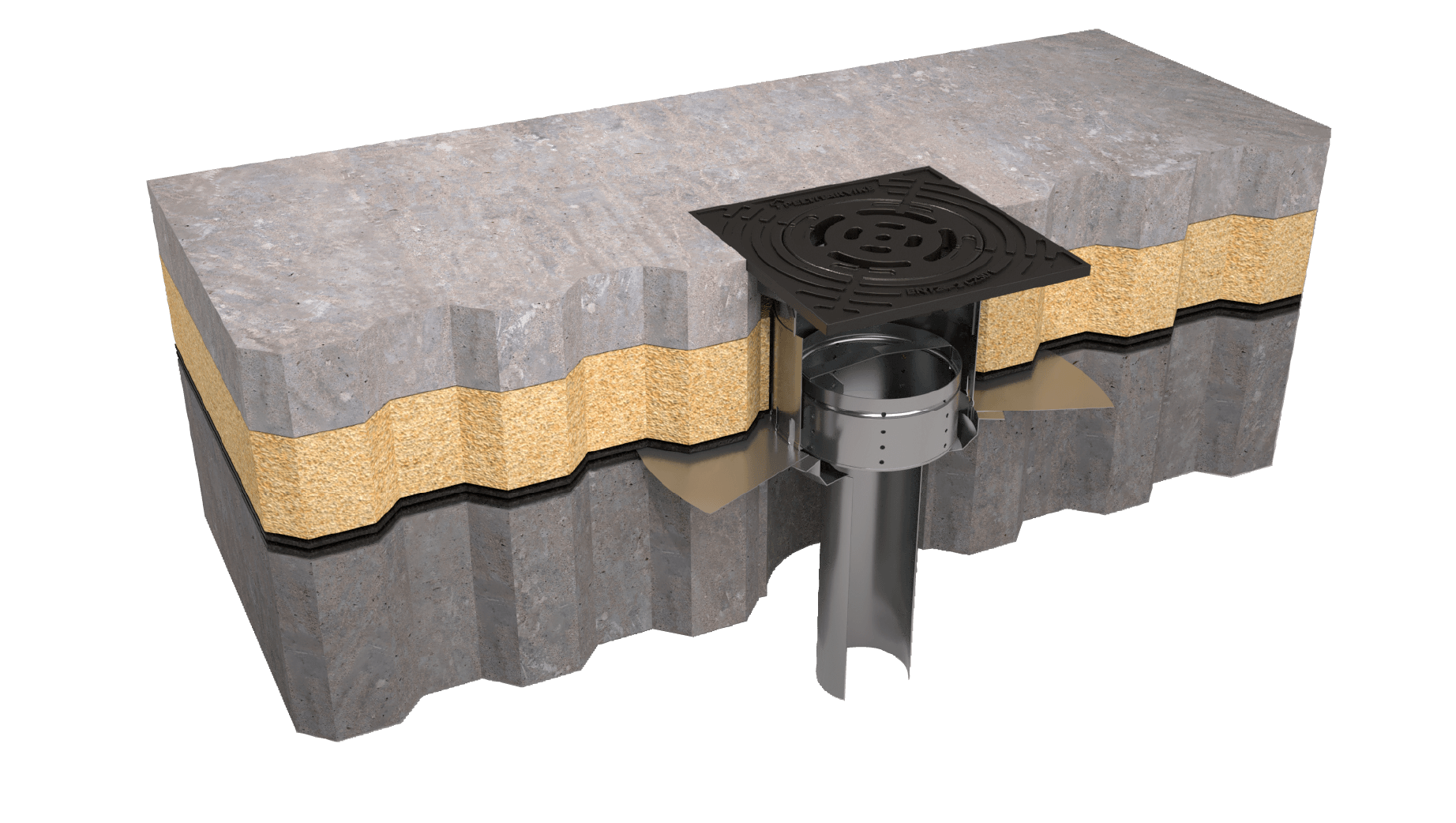

  • Peltitarvike LTSK screen structure for traffic deck + drain KK
  • Peltitarvike LTSK screen structure for traffic deck 205/300x300 dimensions
    Height made to order

Screen structure for traffic deck LTSK 205/300x300, 25t

Screen structure with two-part adjustable extension ring and cast iron grate for drainage of lightly trafficked areas. Includes a sand bucket.

Compatible with inverted structure drain model KK.

Technical data
Material
Acid-resistant steel, grate and frame made of cast iron
Grate diameter ∅
205 mm
Grate frame
300x300 mm
Extension ring diameter ∅
220 mm
Height adjustment range*

140-200, 185-260, 250-380, 370-600, 500-840 or 750-1200 mm

Load capacity
25 t

* Height from waterproofing to finished surface

Other sizes can be made to order.

LVI-numbers
Height adjustment range LVI-nro
140-200 mm 3381253
185-260 mm 3381254
250-380 mm 3381255
370-600 mm 3381256
500-840 mm 3381257
750-1200 mm 3381258

Documents and images

Maintenance

Emptying and cleaning the sand bucket. Inspection of the grate, e.g. for cracks.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD product libraries.

ProdLib
MagiCAD
Compatible products

Inverted structure drain
