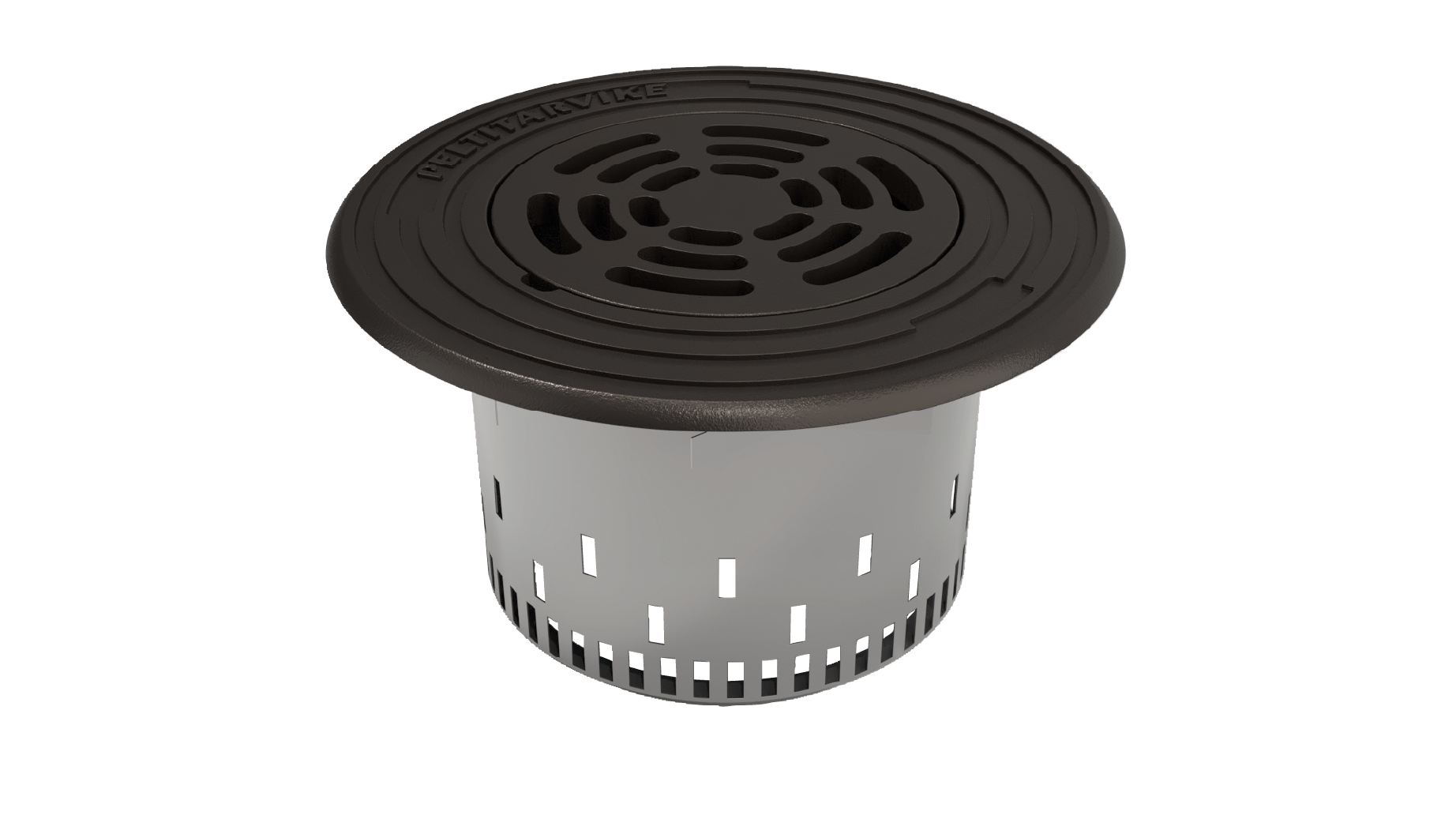

  • Screen structure for traffic deck 300/500
  • Screen structure for traffic deck + drain KK

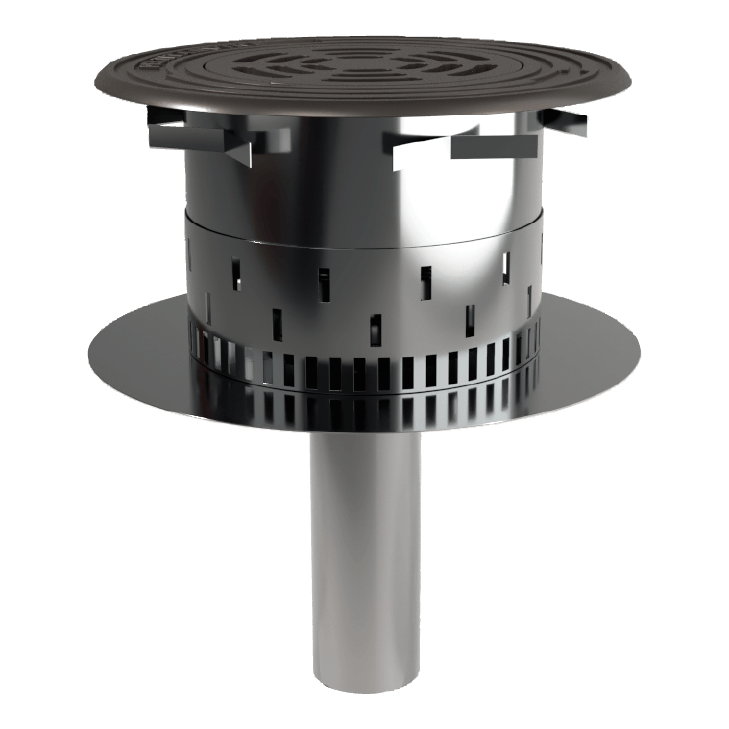

    Screen structure for traffic deck and drain KK
  • Screen structure for traffic deck with sand bucket

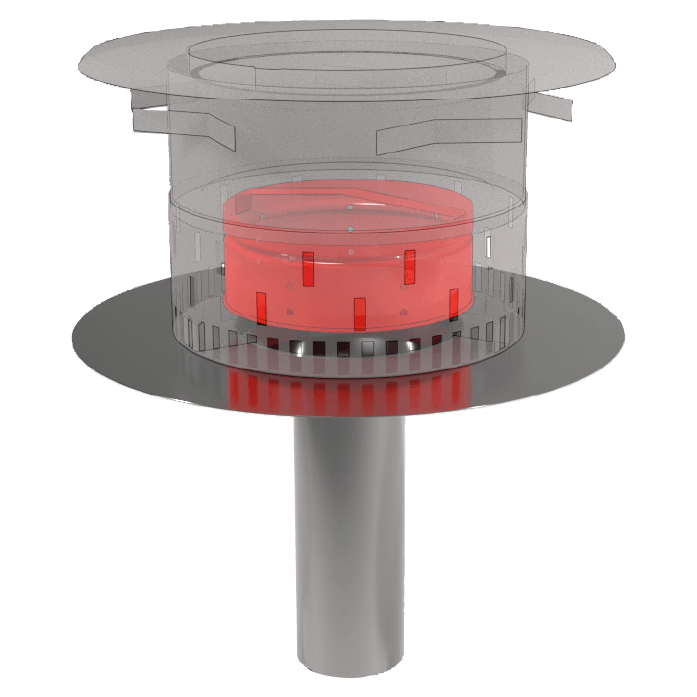

    Screen structure for traffic deck with sand bucket

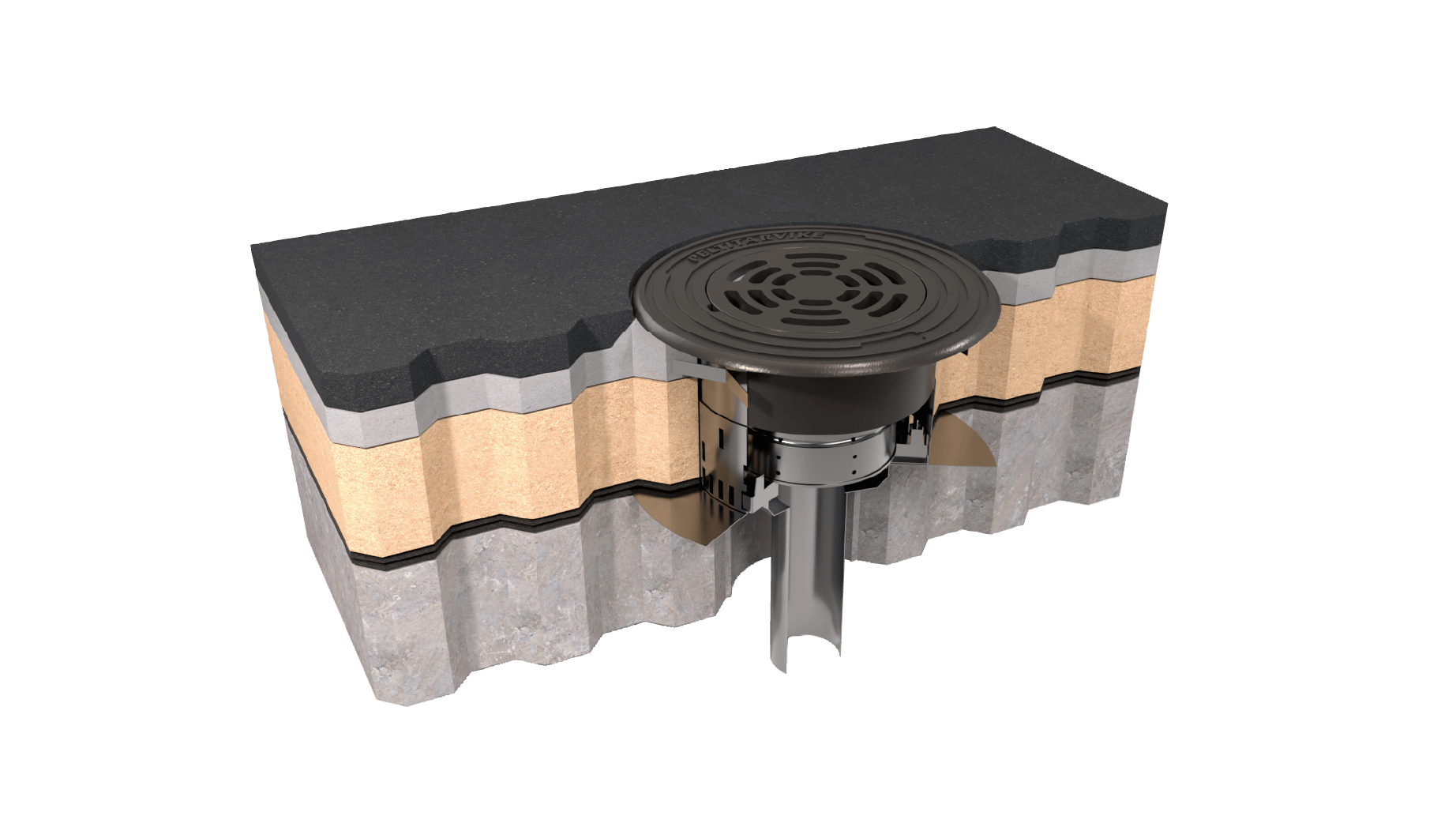

  • Screen structure for traffic deck
  • Screen structure for traffic deck 300/500 dimensions
    Height made to order

Screen structure for traffic deck 300/500, 40t

Screen structure with two-part adjustable extension ring and cast iron grate for drainage of trafficked areas. Available with locking, non-locking or solid cover. Includes a sand bucket.

Compatible with inverted structure drain model KK.

Technical data
Material
Acid-resistant steel, grate and frame made of cast iron
Grate diameter ∅
295 mm
Grate frame diameter ∅
500 mm
Extension ring diameter ∅
353 mm
Height adjustment range*

180-230, 220-320, 290-450, 400-650 or 550-950 mm

Load capacity
40 t

* Height from waterproofing to finished surface.

Other sizes can be made to order.

LVI-numbers
Height adjustment range LVI-nro
180-230 mm 3381259
180-230 mm, locking grate 3381260
220-320 mm 3381261
220-320 mm, locking grate 3381262
290-450 mm 3381263
290-450 mm, locking grate 3381264
400-650 mm 3381265
400-650 mm, locking grate 3381266
550-950 mm 3381267
550-950 mm, locking grate 3381268

Documents and images

Maintenance

Emptying and cleaning the sand bucket. Inspection of the grate, e.g. for cracks.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD Cloud product libraries.

ProdLib
MagiCAD Cloud
Compatible products

Inverted structure drain

With the help of our technical sales, you can find a solution that works for even the most demanding site!
