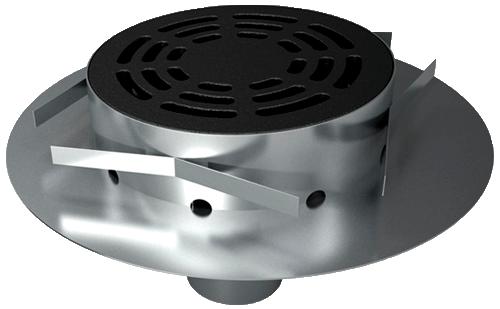

Drain for concrete decks

Stormwater drain with cast iron grate for water removal from concrete decks. The drain is equipped with cast-in supports, cast-in sleeve and openings at the bottom of the frame. The cast-in sleeve allows the drain to be installed inside the concrete formwork.

Technical data
Material
Acid-resistant steel, grate and frame made of cast iron
Outlet location
Bottom
Outlet diameter ∅
110 mm
Outlet length
350 mm

Grate:

Diameter ∅ Frame height Flange  diameter ∅ Load capacity
180 mm   60 or 80 mm 320 mm 40 t
205 mm  60 or 80 mm 410 mm   25 t
300mm  60 or 80 mm 490 mm 40 t



Other sizes can be made to order.

Accessories

Self-adjusting thermocable (16W or 32W)

The drain with thermocable stays unfrozen in winter conditions.  Available with 2, 3, 5, 10, 15, 20 and 25 m connection cable.

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

LVI-numbers
Product LVI-nro
Drain for concrete deck Ø180, H=60/350 3381214
Drain for concrete deck Ø180, H=80/350 3381215
Drain for concrete deck Ø300, H=60/350 3381216
Drain for concrete deck Ø300, H=80/350 3381217
Drain for concrete deck Ø205, H=60/350 3381218
Drain for concrete deck Ø205, H=80/350 3381219
