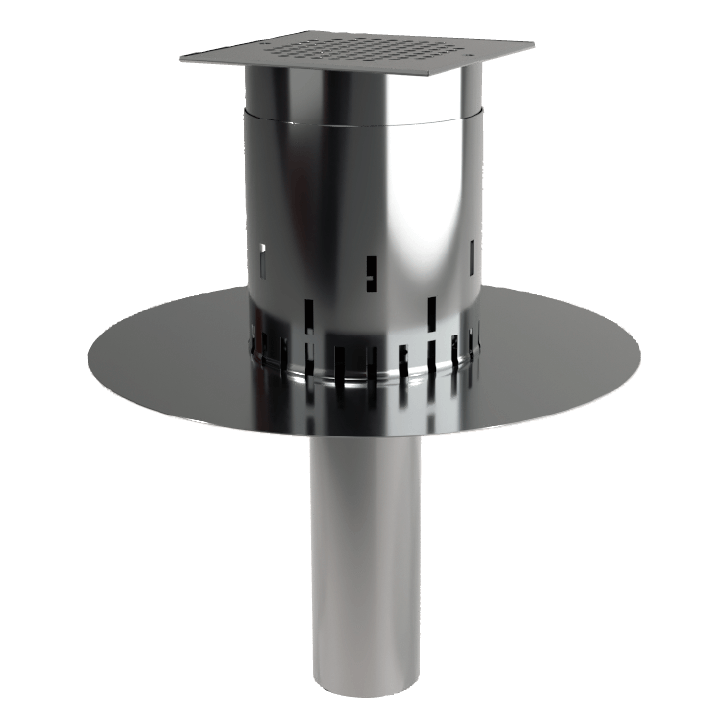

    Screen structure for terraces and drain KK
  • Screen structure for terraces with sand bucket

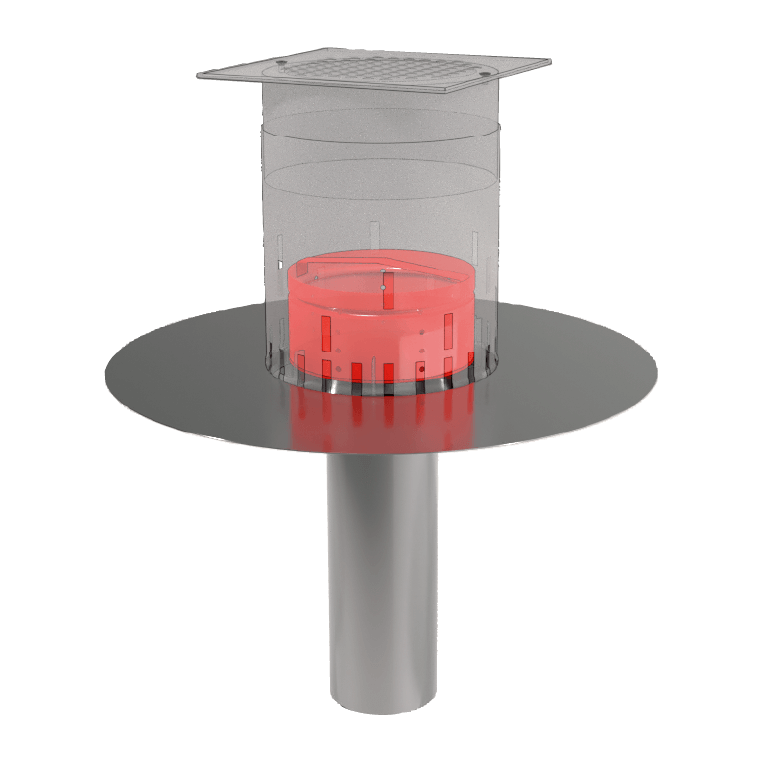

    Screen structure for terraces with sand bucket
  • Screen structure for terraces dimensions
    Height made to order

Screen structure for terrace

Screen structure with two-part adjustable extension ring for drainage of balcony and terrace structures. Water that has passed under the surface structure is directed to the stormwater drainage system through the openings in the lower-part of the screen structure extension ring. Includes a sand bucket from a height of 110-160 mm.

Compatible with inverted structure drain KK.

Technical data
Material
Acid-resistant steel
Perforated grate
240x240 mm
Grate frame
244x244 mm
Extension ring diameter ∅
220 mm
Height adjustment range*

40-55, 50-70, 60-80, 70-100, 85-120, 110-160, 140-200, 165-260, 235-380, 325-530, 455-810 or 750-1200 mm

* Height from waterproofing to finished surface

Other sizes can be made to order.

LVI-numbers
Height adjustment range LVI-nro
40-55 mm 3381296
50-70 mm 3381297
60-80 mm 3381298
70-100 mm 3381299
85-120 mm 3381300
110-160 mm 3381301
140-200 mm 3381302
165-260 mm 3381303
235-380 mm 3381304
325-530 mm 3381305
455-810 mm 3381306
750-1200 mm 3381307

Documents and images

Maintenance

Emptying and cleaning the sand bucket.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD Cloud product libraries.
