    Screen structure for balcony and drain PK
  • Peltitarvike screen structure for balcony dimensions
    Height made to order

Screen structure for balcony

Screen structure with 2-part adjustable extension ring for drainage of balcony and terrace structures.

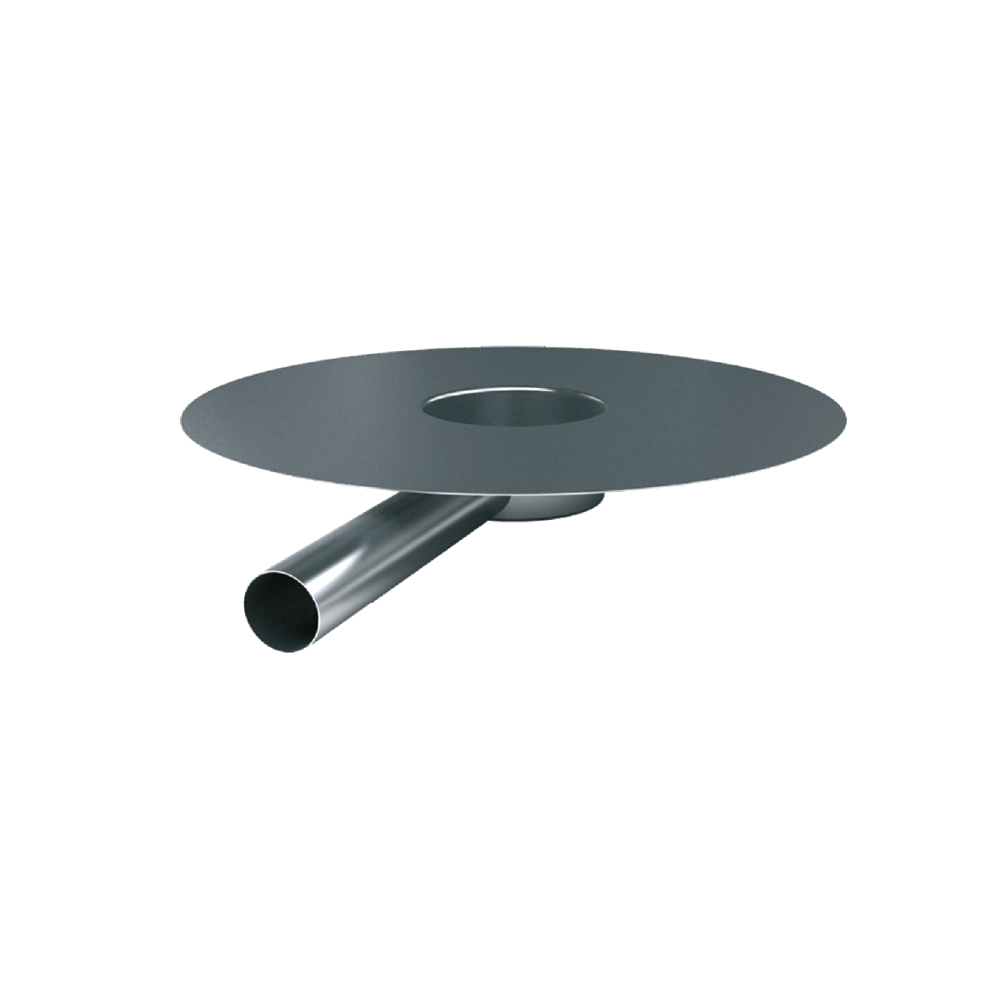

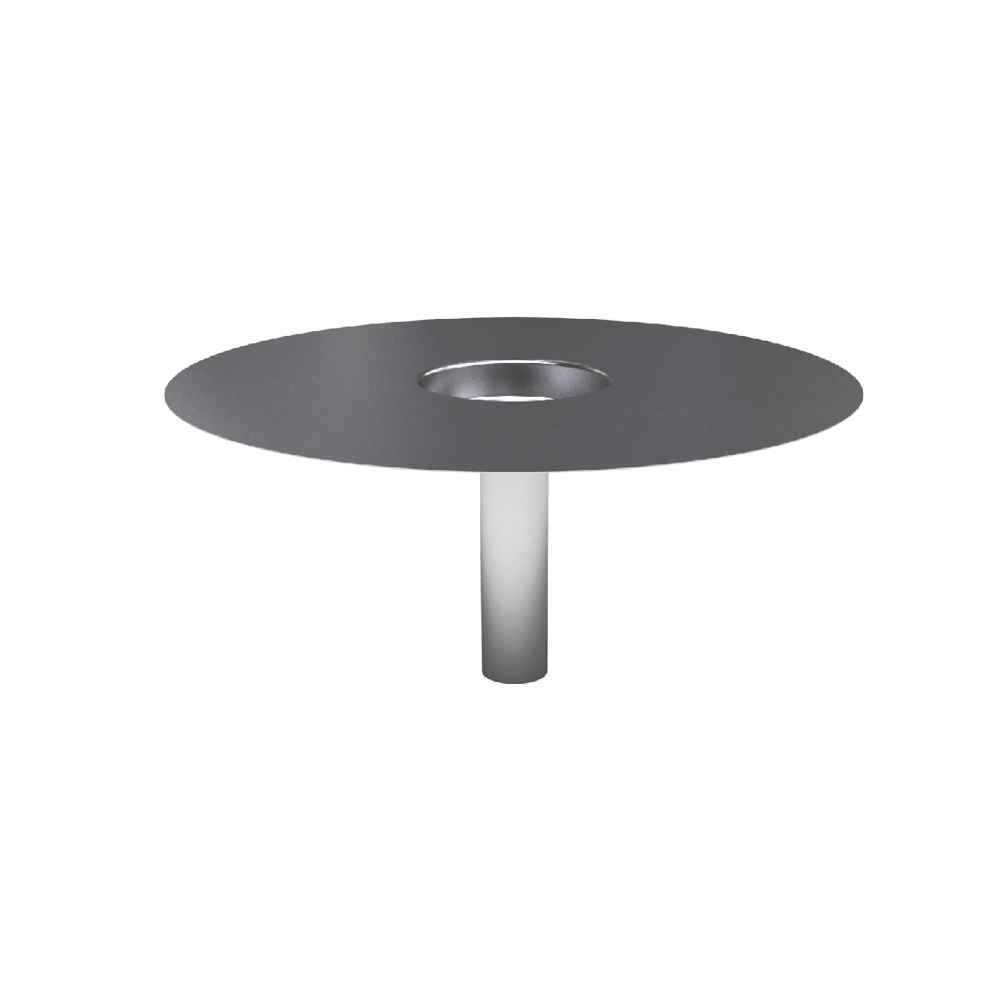

Compatible with PK balcony drain.

Technical data
Material
Acid-resistant steel
Perforated grate
190x190 mm
Grate frame
194x194 mm
Extension ring diameter ∅
140 mm
Height adjustment range*

55-80 mm

70-110 mm

90-140 mm

125-190 mm

170-270 mm

230-380 mm

305-510 mm

* Height from waterproofing to finished surface

Other sizes can be made to order.

LVI-numbers
Height adjustment range LVI-nro
55-80 mm 3381279
70-110 mm 3381280
90-140 mm 3381281
125-190 mm 3381282
170-270 mm 3381283
230-380 mm 3381284
305-510 mm 3381285
30 mm, solid 3381286
40 mm, solid 3381287

Documents and images

Maintenance

Grate inspection and cleaning.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD product libraries.

ProdLib
MagiCAD
Compatible products

Inverted structure drains

With the help of our technical sales, you can find a solution that works for even the most demanding site!
