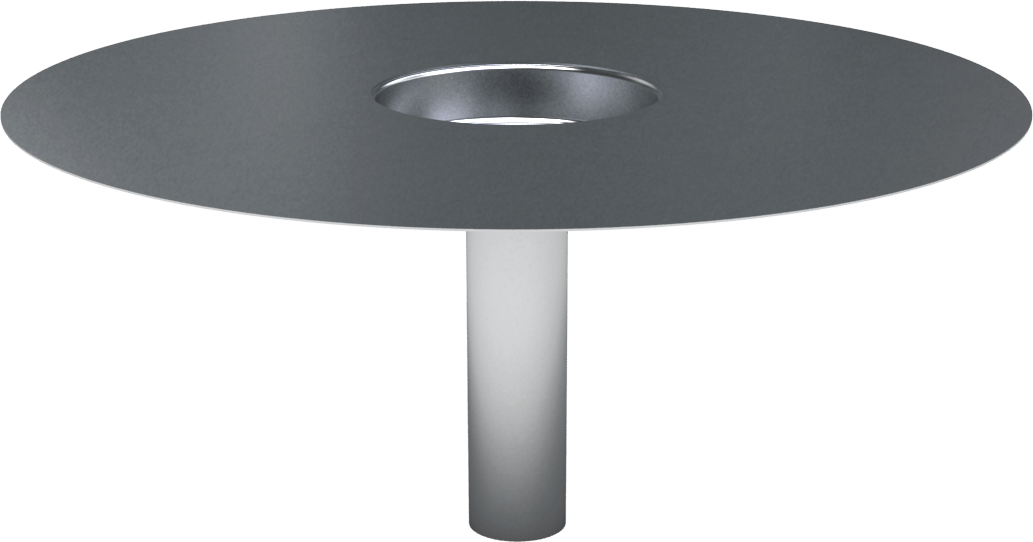

  • Peltitarvike balcony drain PK
  • Peltitarvike balcony drain PK dimensions

Balcony drain PK with vertical outlet

Balcony drain with vertical outlet suitable for inverted structures of balconies and terraces. The inverted structure drain is always used together with a suitable screen structure. The drain made of acid-resistant steel withstands demanding weather conditions and temperature fluctuations.

The drains have a primed flange that ensures a secure connection to the bitumen membrane. Drains can also be ordered without a primed flange for other waterproofing membranes.

Technical data
Model
PK
Material

Acid-resistant steel

Outlet location
Bottom
Outlet diameter ∅
50 or 75 mm
Outlet height
350 mm
Flange diameter ∅
530 mm
Diameter of the collection basin ∅
140 mm
Depth of the collection basin
30 mm

Other sizes can be made to order.

Accessories

Self-adjusting thermocable (16W or 32W)

The drain with thermocable stays unfrozen in winter conditions. Available with 2, 3, 5, 10, 15, 20 and 25 m connection cable.

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

Bitumen flange (580x600 mm)

The bitumen flange provides the best possible connection between the drain and the waterproofing.

LVI-numbers
Product LVI-nro
PK-50/350 3381106
PK-75/350 3381107

Documents and images

Certifications and approvals

Tested in accordance with SFS-EN 1253-2.

The European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the roof drain is determined by site-specific certification.

Maintenace and spare parts

Maintenance of the screen structure in accordance with the product maintenance instructions. Other maintenance measures in accordance with the property service manual.

Objects for the designer

BIM and CAD models of Peltitarvike's drainage products can be found in the ProdLib and MagiCAD product libraries.

ProdLib
MagiCAD
Compatible products

Screen structures and grates

With the help of our technical sales, you can find a solution that works for even the most demanding site!
