Height made to order

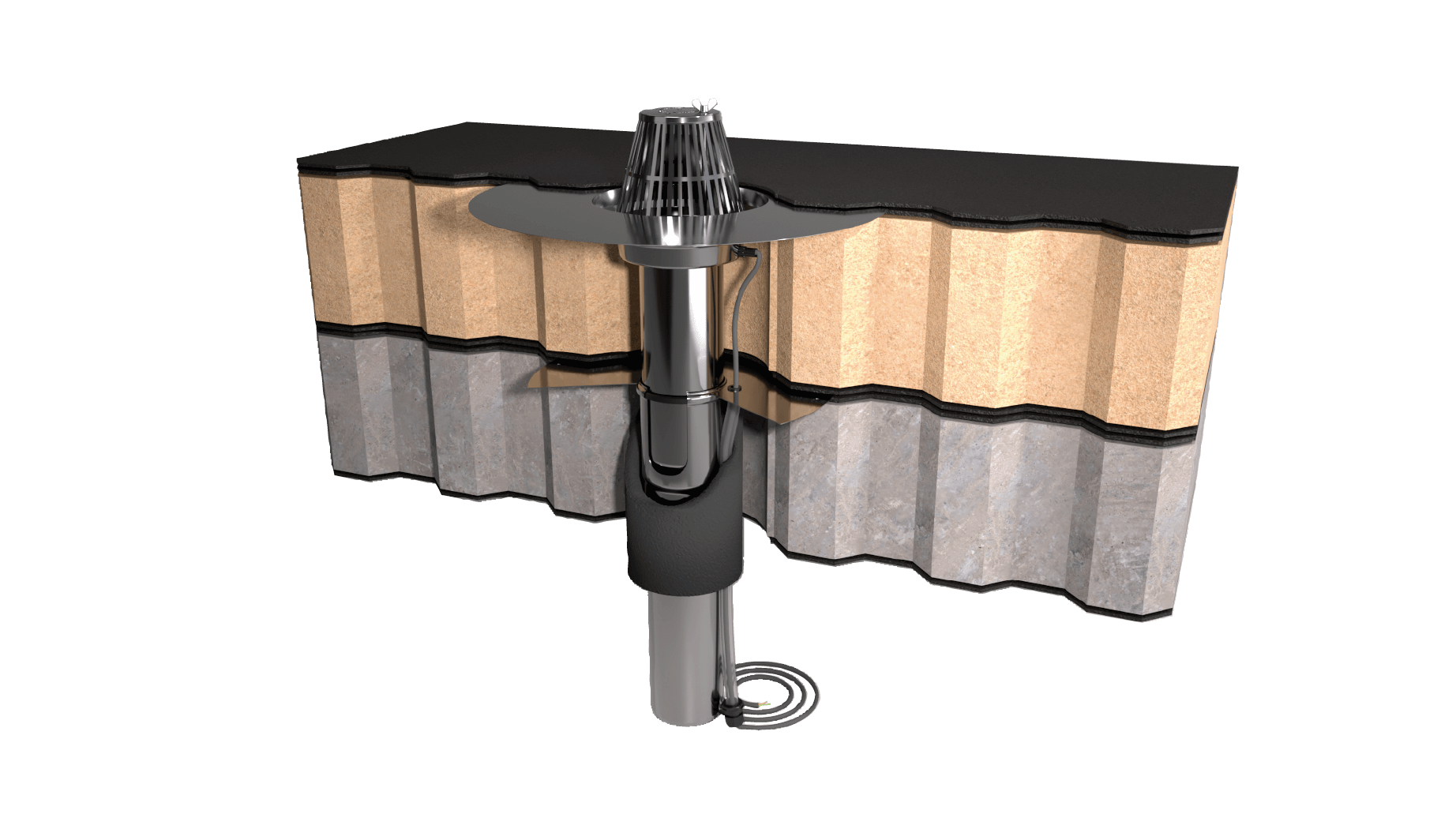

Vapor barrier roof drain HSKS®

Drain for installation in the roof's vapor barrier. Thanks to the vapor barrier drain, rainwater can be directed to the drain at an early stage of roofing work and the interior of the building remains dry during roofing work. Roofing work is facilitated and accelerated when the working order can be chosen more freely. The actual roof drain is connected to the vapor barrier drain during waterproofing work.

The roof drain to be connected to the waterproofing is selected to match the vapor barrier drain's connecting sleeve. The connecting sleeve has a lip seal. In addition, the vapor barrier drains have a passing-through bushing and a cover for the cable of the roof drain heating element. There is a strain relief at the lower end of the cable cover. The drains have a primed flange.

Technical data

Model: HSKS®
Material: Acid-resistant steel

Outlet diameter ∅:	Outlet height:	Flange diameter
50 mm	160 or 500 mm	350mm
75 mm	175 or 500 mm	410 mm
110 mm	200 or 500 mm	410 mm
160 mm	290 mm	460 mm

Other sizes can be made to order.

Accessories

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

Bitumen flange

The bitumen flange provides the best possible connection between the manhole and the waterproofing.

LVI-numbers

Product	LVI-nro
HSKS-50/160	3380478
HSKS-50/500	3380479
HSKS-75/175	3380481
HSKS-75/500	3380484
HSKS-110/200	3380486
HSKS-110/500	3380487
HSKS-160/290	3380488

Documents and images

Product data sheet

Certifications and approvals

Tested in accordance with SFS-EN 1253-2.

The European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the roof drain is determined by site-specific certification.

Roof drain CE-marking

ProdLib

MagiCAD

Are the roof drains CE marked?

Roof drains are not CE marked, as the European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the drain is determined by site-specific certification.

How do I choose a suitable roof drain for my site?

In our roof drain range, you will find drains for every site. For a demanding site where a lot of debris accumulates on the roof or which is located in a windy place, we recommend an A or A Max roof drain with an attachable debris strainer.

The cost-effective roof drain C is well suited for smaller roofs or canopies.

Inverted structure drains can be found separately in our KK and PK drains.

Are your roof drains standard size?

Our roof drains have a wide range of standard dimensions in terms of pipe diameter and length, for example, pipe lengths are available up to 1200 mm. All our products can also be customised to the desired dimensions on request.

What information do I need to provide when ordering roof drains?

The most important information we need about the product you want is the roof drain model, the diameter and length of the drain pipe.

How do I know how long a roof drain I need?

The roof drain outlet pipe must reach through the supporting structure, no connections should be made inside the structure. It is good to size the drain pipe so that the drain end of the pipe reaches at least 100 mm below the load-bearing structure.

How often and how should roof drains be maintained?

Roof drains must be maintained regularly. The grate must be cleaned of debris and it must be ensured that the water flow to the roof drain is unobstructed.

Do I need an scupper on the roof if the water is drained through the roof drains?

Yes, the scupper's job is to direct the water from the roof to the outside of the wall structure when the roof drain becomes blocked. Each roof, which is drained through the roof drains, must also have at least one scupper. Water removal from small roofs and canopies can be achieved by using only scuppers.
