Renovation roof drain C

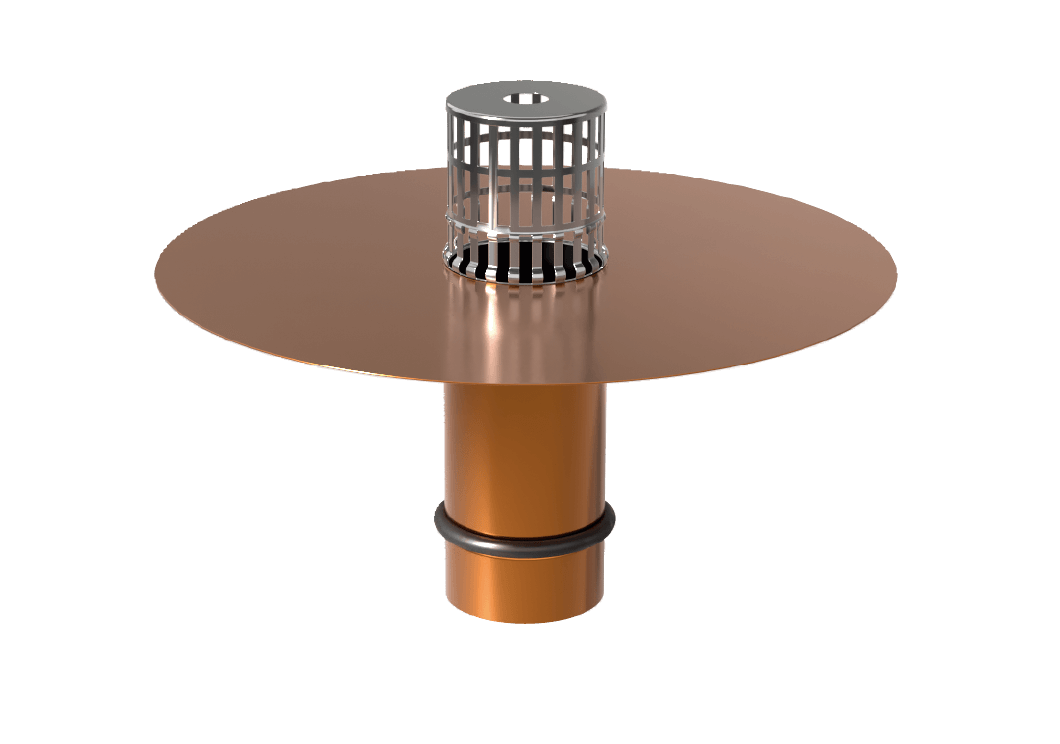

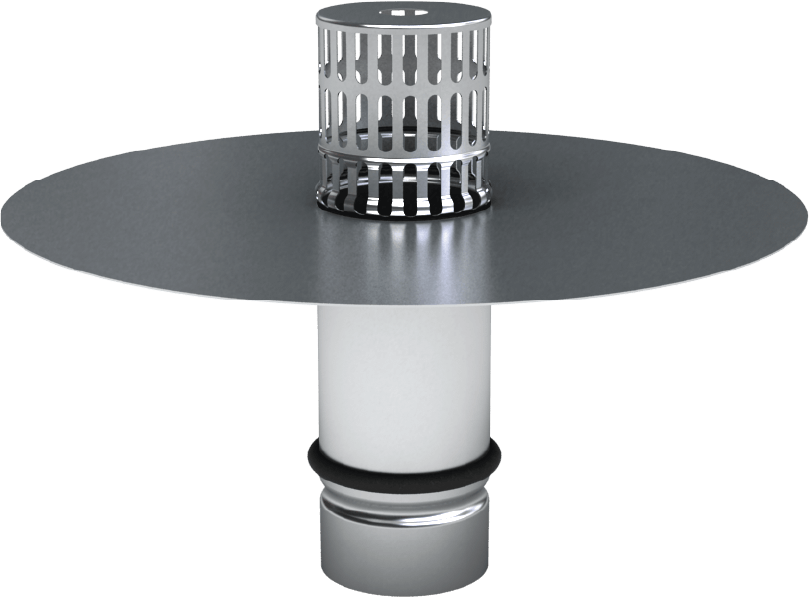

Renovation roof drain suitable for flat bitumen membrane roofs. The roof drain is equipped with a grate that prevents leaves and debris from entering the drain, allowing for a high water flow. The drains made of acid-resistance steel have a primed flange.

The renovation drain C, which is installed inside the old roof drain, is used when the old roof drains are to be left in place during the renovation of the roof. The diameter of the drain pipe must be 10-12 mm smaller than the inside diameter of the old roof drain pipe.

Technical data

Model: Renovation roof drain C
Grate: Grate C
Material: Acid-resistant steel (ars) or copper (cu)
Flange diameter ∅: Min. diameter of the exhaust pipe +300 mm
Outlet diameter ∅: 42-150mm
Outlet height: 200mm

Other sizes can be made to order.

Accessories

Bitumen flange

The bitumen flange provides the best possible connection between the drain and the waterproofing.

Extra screen (∅ 300 or 400 mm)

An additional screen placed on top of the roof drain screen prevents the drain from clogging more effectively.

LVI-numbers

Product	LVI-nro
C-42/200 ars	3381109
C-50/200 ars	3381110
C-54/200 ars	3381111
C-60/200 ars	3381112
C-64/200 ars	3381113
C-68/200 ars	3381114
C-75/200 ars	3381115
C-80/200 ars	3381116
C-85/200 ars	3381117
C-90/200 ars	3381118
C-90/300 ars	3381119
C-90/350 ars	3381120
C-95/200 ars	3381121
C-100/200 ars	3381122
C-100/400 ars	3381123
C-135/200 ars	3381124
C-140/200 ars	3381125
C-150/200 ars	3381126
C-42/200 cu	3381132
C-50/200 cu	3381133
C-54/200 cu	3381134
C-64/200 cu	3381135
C-75/200 cu	3381136
C-80/200 cu	3381137
C-85/200 cu	3381138
C-90/200 cu	3381139
C-95/200 cu	3381140
C-100/200 cu	3381141
C-150/200 cu	3381142

Documents and images

Product data sheet

Certifications and approvals

Tested in accordance with SFS-EN 1253-2.

The European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the roof drain is determined by site-specific certification.

Roof drain CE-marking

Maintenance and spare parts

The grate must be inspected and cleaned. Other maintenance needs in accordance with the roof service manual.

Spare parts: grate C

ProdLib

MagiCAD

Are the roof drains CE marked?

Roof drains are not CE marked, as the European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the drain is determined by site-specific certification.

Are your roof drains standard size?

Our roof drains have a wide range of standard dimensions in terms of pipe diameter and length, for example, pipe lengths are available up to 1200 mm. All our products can also be customised to the desired dimensions on request.

In a renovation project, the old roof drains are to be left in place. How do I choose the right size of a renovation drain for my site?

The diameter of the drain pipe is 10 mm smaller than the inside diameter of the old drain pipe. Our technical support will assist you in choosing the right size of a renovation drain, if necessary. We only need to know the inside diameter of the old drain pipe and the drain model at the site.

How do I know how long a roof drain I need?

The roof drain outlet pipe must reach through the supporting structure, no connections should be made inside the structure. It is good to size the drain pipe so that the drain end of the pipe reaches at least 100 mm below the load-bearing structure.

How often and how should roof drains be maintaned?

Roof drains must be maintained regularly. The grate must be cleaned of debris and it must be ensured that the water flow to the roof drain is unobstructed.
