  • Peltitarvike green roof edge trim
  • Peltitarvike green roof edge trim

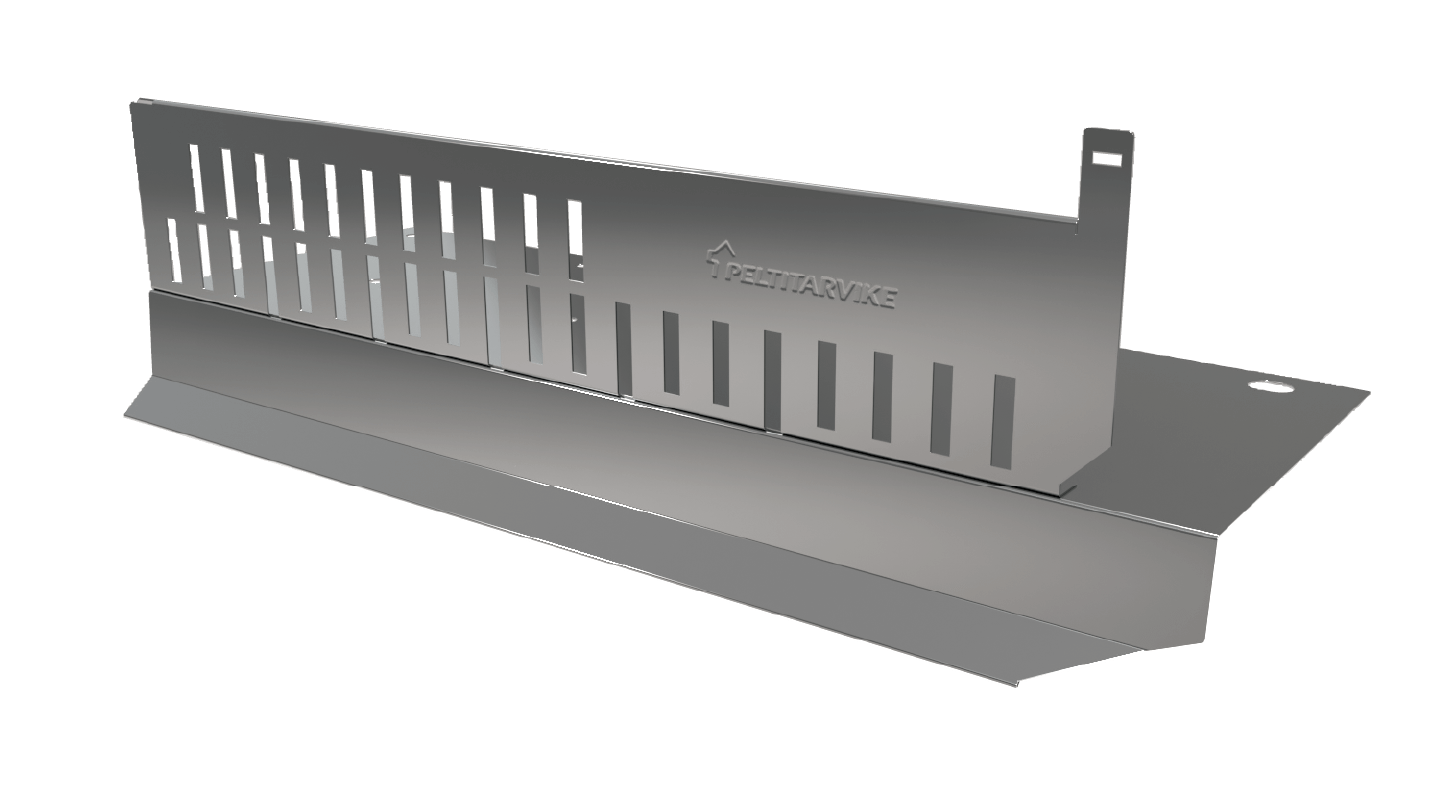

  • Peltitarvike green roof edge trim perforated

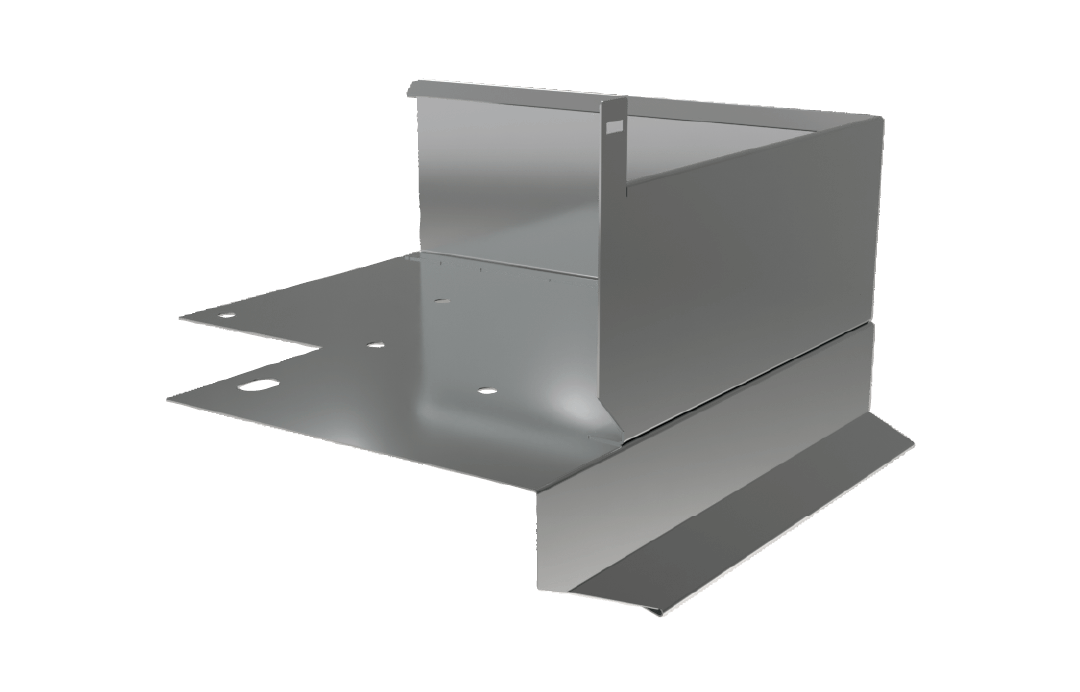

  • Peltitarvike green roof edge trim corner
  • Green roof edge trim dimensions
  • Green roof edge trim right corner dimensions
    Dimensions right corner (slotted)
  • Green roof edge trim left corner dimensions
    Dimensions left corner (slotted)
  • Green roof edge trim right corner dimensions
    Dimensions right corner (solid)
  • Green roof edge trim left corner dimensions
    Dimensions left corner (solid)

Green roof edge trim

The green roof edge trim made of acid-resistant steel with a integrated eave flashing is suitable for finishing the eaves of a green roof. The eave flashing with a drip edge attached to the edge trim facilitates and speeds up the installation of the product. The trim is available with a solid or slotted profile. The slotted profile allows excess water to drain from the eaves.

The trims and corner pieces fit together effortlessly with the help of a integrated guide piece. The waterproofing flange of the trim is installed between the membranes. In addition, the flange has mounting holes for mechanical fastening.

Technical data

Material
Acid-resistant steel
Length
2429 mm
Corner piece (90°) side length
∼200 mm
Height from roof
87 mm
Flange width
150 mm

LVI numbers

Product LVI-nro
Edge trim with slotted profile 3381345
Edge trim with solid profile, right 3381346
Edge trim with solid profile, left 3381347
Edge trim corner piece with slotted profile, right 3381348
Edge trim corner piece with slotted profile, left 3381349
Edge trim corner piece with solid profile, right 3381350
Edge trim corner piece with solid profile, left 3381351

Documents and images

Explore the properties

Tähystäjän päiväkoti Peltitarvike referenssi

Tähystäjä Kindergarden

Peltitarvike delivered stylish green roof edge trims made of acid-resistant steel for the finishing of the green roofs of the kindergarten's courtyard buildings.
