Height made to order

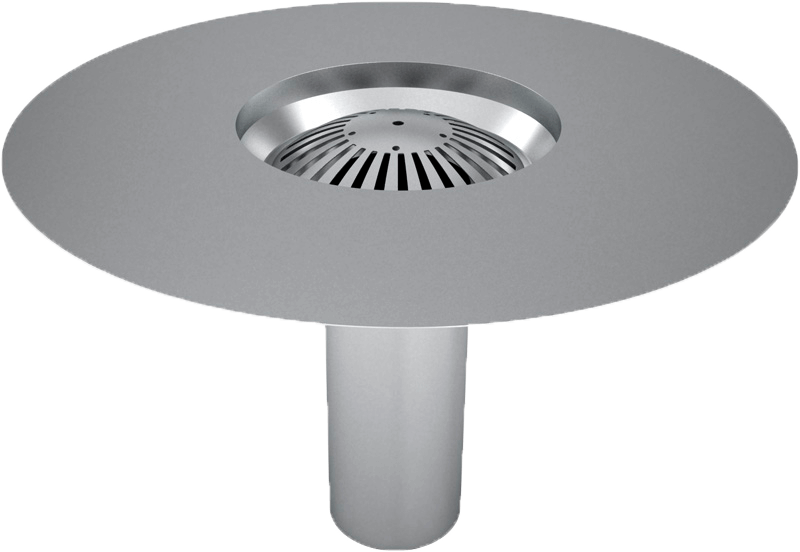

Roof drain B

Roof drain suitable for the siphonic roof drainage system. The roof drain is equipped with a grate that prevents leaves and debris from entering the drain, allowing for a high water flow.

The roof drain made of acid-resistant steel withstands demanding weather conditions, temperature fluctuations and UV radiation. The drains made of acid-resistant steel have a primed flange.

Technical data

Model: B
Grate: Dome grate B

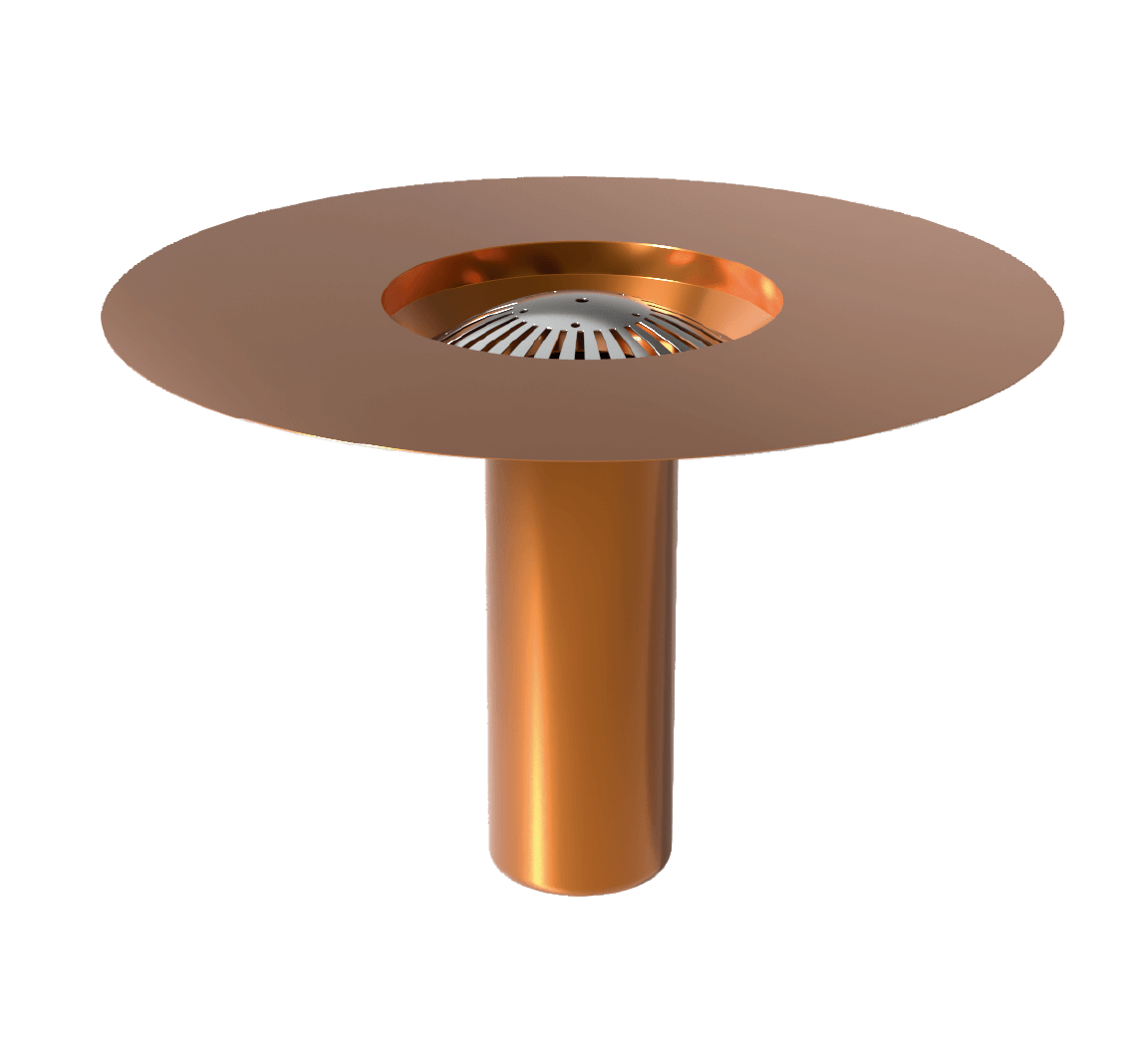

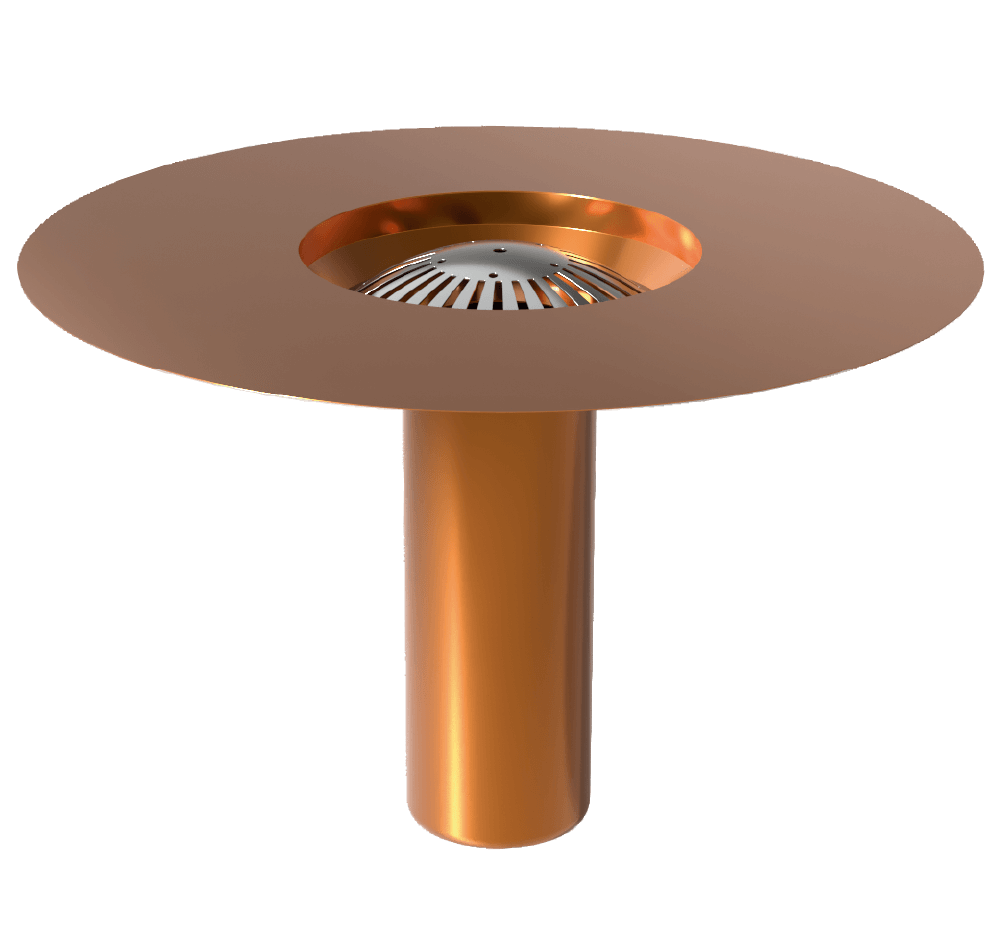

Material: Acid-resistant steel (ars) or copper (cu)
Flange diameter ∅: 530 mm
Diameter of the collection basin ∅: 220 mm
Depth of the collection basin: 50 mm
Outlet diameter ∅: 50 or 75mm
Outlet height: 250, 300, 350, 400, 450, 500, 550 or 600 mm

Other sizes can be made to order.

Accessories

Self-adjusting thermocable (16W or 32W)

The roof drain with thermocable stays unfrozen in winter conditions. Available with 2, 3, 5, 10, 15, 20 and 25 m connection cable.

Condensation insulation (13mm cellular rubber)

Cellular rubber insulation prevents warm indoor air from entering the surface of the cold drain pipe, which prevents the accumulation of possible condensation on the surface of the pipe or drain. Temperature range -40° – +85°.

Bitumen flange

The bitumen flange provides the best possible connection between the drain and the waterproofing.

Leaf grate B (∅ 220 mm)

LVI-numbers

Product	LVI-nro
B-50/250 ars	3381175
B-50/300 ars	3381176
B-50/350 ars	3381177
B-50/400 ars	3381178
B-50/450 ars	3381179
B-50/500 ars	3381180
B-50/550 ars	3381181
B-50/600 ars	3381182
B-54/350 ars	3381183
B-75/250 ars	3381184
B-75/300 ars	3381185
B-75/350 ars	3381186
B-75/400 ars	3381187
B-75/450 ars	3381188
B-75/500 ars	3381189
B-75/550 ars	3381190
B-75/600 ars	3381191
B-50/250 cu	3381157
B-50/300 cu	3381158
B-50/350 cu	3381159
B-50/400 cu	3381160
B-50/450 cu	3381161
B-50/500 cu	3381162
B-50/550 cu	3381163
B-50/600 cu	3381164
B-54/250 cu	3381165
B-54/350 cu	3381166
B-75/250 cu	3381167
B-75/300 cu	3381168
B-75/350 cu	3381169
B-75/400 cu	3381170
B-75/450 cu	3381171
B-75/500 cu	3381172
B-75/550 cu	3381173
B-75/600 cu	3381174

Documents and images

Product data sheet

Certifications and approvals

Tested in accordance with SFS-EN 1253-2.

The European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the roof drain is determined by site-specific certification.

Roof drain CE-marking

Maintenance and spare parts

The grate must be inspected and cleaned. Other maintenance needs in accordance with the roof service manual.

Spare parts: dome grate B

ProdLib

MagiCAD

Are the roof drains CE marked?

Roof drains are not CE marked, as the European standardisation organisation CEN has not defined a harmonised product standard (hEN) for roof drains, on the basis of which the product could be CE marked. The product eligibility of the drain is determined by site-specific certification.

How do I choose a suitable roof drain for my site?

In our roof drain range, you will find drains for every site. For a demanding site where a lot of debris accumulates on the roof or which is located in a windy place, we recommend an A or A Max roof drain with an attachable debris strainer.

The cost-effective roof drain C is well suited for smaller roofs or canopies.

Inverted structure drains can be found separately in our KK and PK drains.

Are your roof drains standard size?

Our roof drains have a wide range of standard dimensions in terms of pipe diameter and length, for example, pipe lengths are available up to 1200 mm. All our products can also be customised to the desired dimensions on request.

What information do I need to provide when ordering roof drains?

The most important information we need about the product you want is the roof drain model, the diameter and length of the drain pipe.

How do I know how long a roof drain I need?

The roof drain outlet pipe must reach through the supporting structure, no connections should be made inside the structure. It is good to size the drain pipe so that the drain end of the pipe reaches at least 100 mm below the load-bearing structure.

How often and how should roof drains be maintained?

Roof drains must be maintained regularly. The grate must be cleaned of debris and it must be ensured that the water flow to the roof drain is unobstructed.

Do I need an scupper on the roof if the water is drained through the roof drains?

Yes, the scupper's job is to direct the water from the roof to the outside of the wall structure when the roof drain becomes blocked. Each roof, which is drained through the roof drains, must also have at least one scupper. Water removal from small roofs and canopies can be achieved by using only scuppers.
