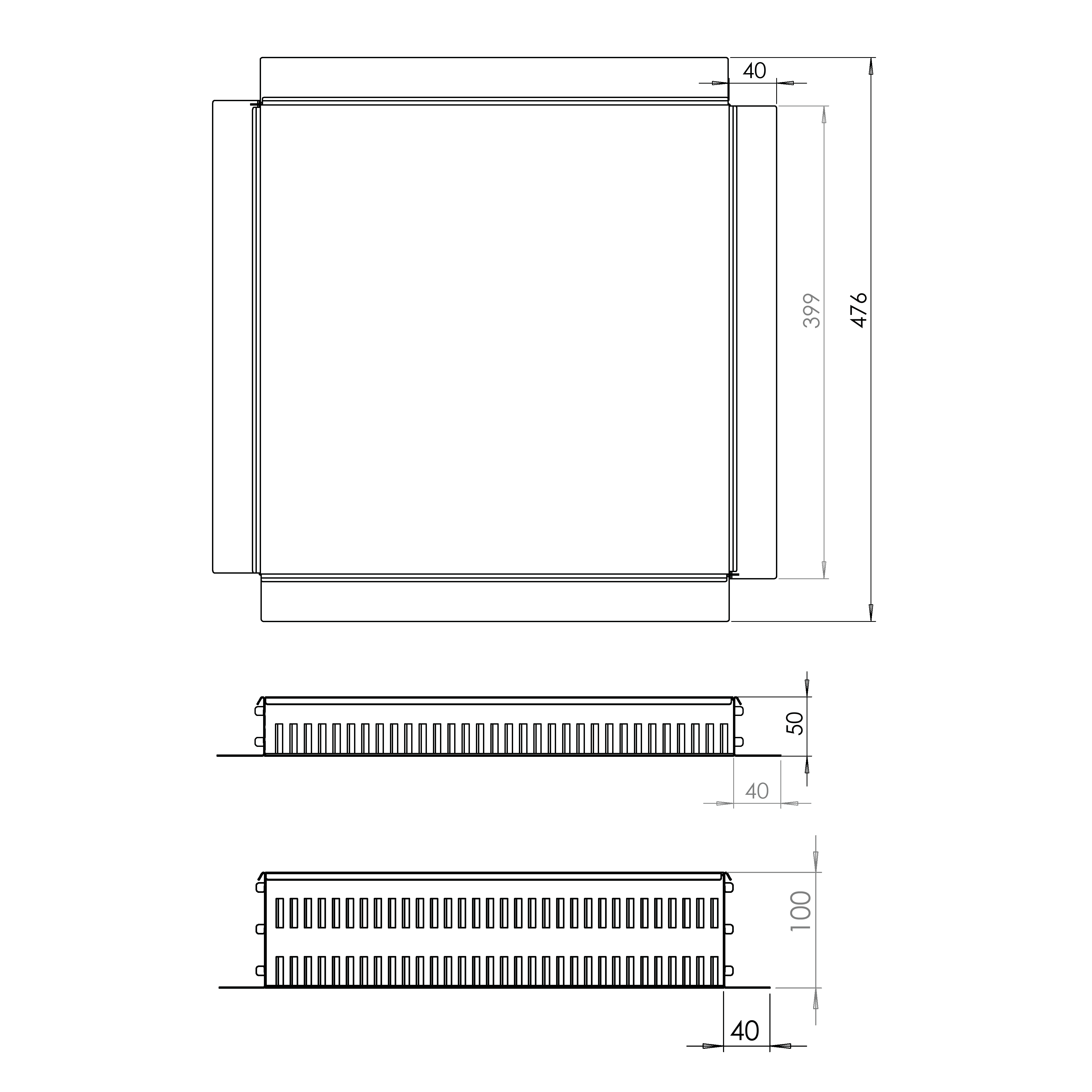

  • Green structure separation trim dimensions

Green structure separation trim

The green structure separation trim, made of acid-resistant steel, is designed to neatly separate the different materials of a green roof or area. The separation trim is typically used around the screen structure to separate the gravel and the green structure from each other.

The square frame consists of two trims bent at a 90° angle and joined together at the corners with locking pieces, which hold the frame in shape. The separation trim is placed around the screen structure without mechanical fastening.

Technical data

Material
Acid-resistant steel
Side length
400 mm
Height from roof
50 or 100 mm
Flange width
40 mm

Documents and images
